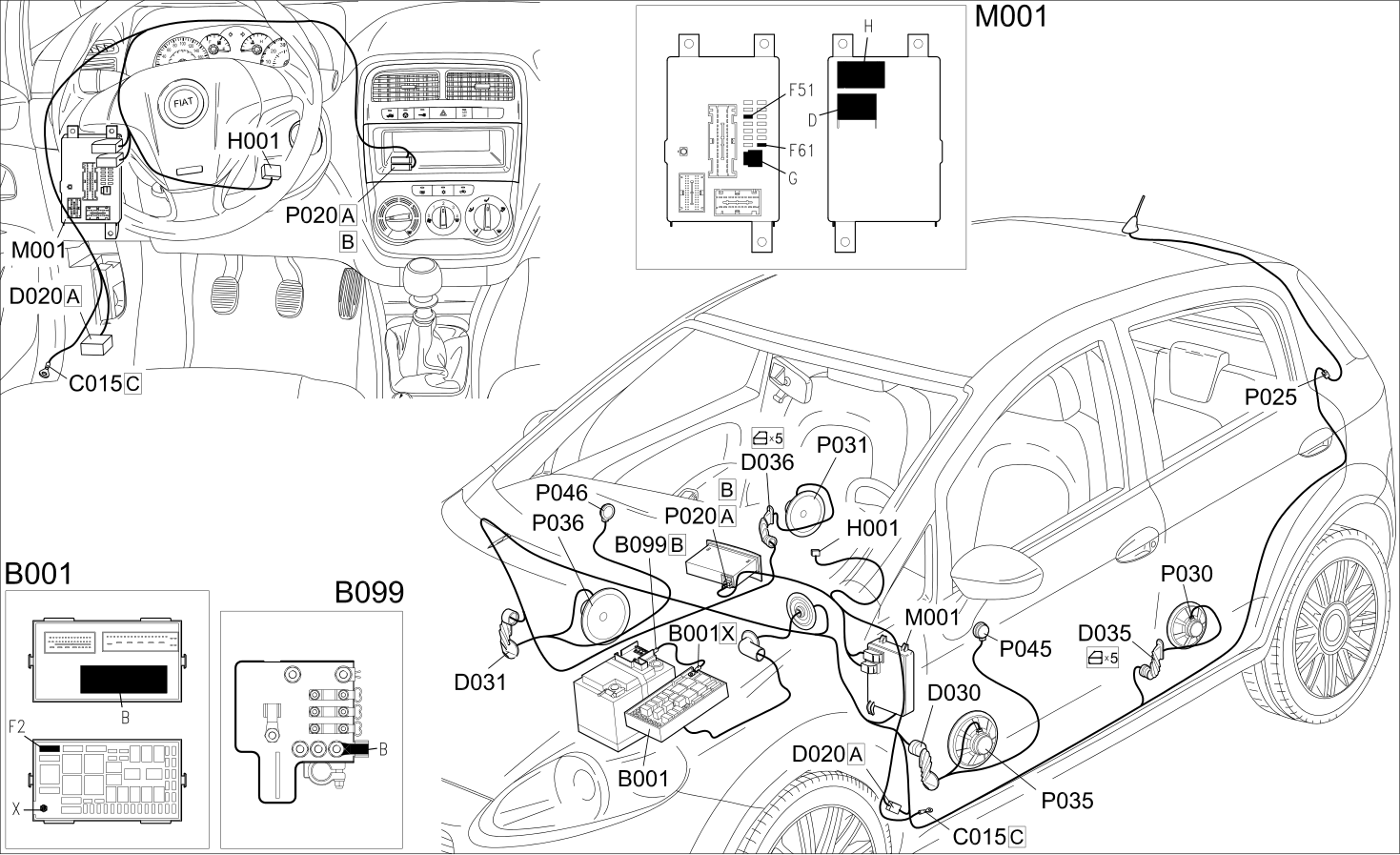

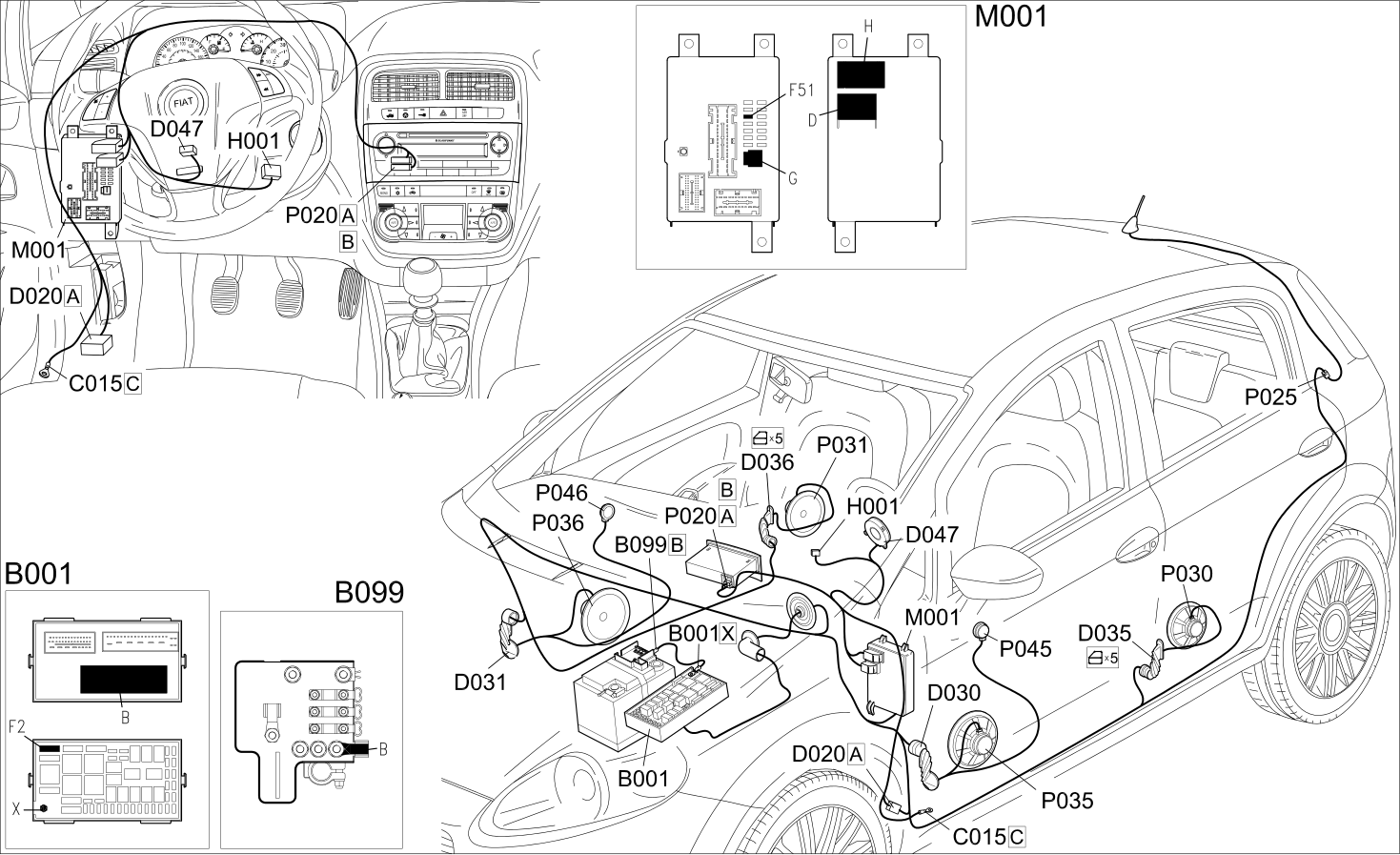

RADIO - COMPONENT LOCATION

COMPONENT LOCATION

Component code	Description	Reference to the operation
B001	JUNCTION UNIT	Op. 5505A13 ADDITIONAL JUNCTION UNIT IN ENGINE COMPARTMENT - R.R.
B099	MAXI FUSE BOX ON BATTERY	Op. 5530B40 SUPPLY BOX ON BATTERY (LINK BATTERY AND FUSE BOX) - R R
C015	DASHBOARD EARTH, DRIVER'S SIDE
D020	DASHBOARD/REAR COUPLING
D030	DRIVER'S FRONT DOOR COUPLING
D031	PASSENGER FRONT DOOR COUPLING
D035	LEFT REAR DOOR COUPLING
D036	RIGHT REAR DOOR COUPLING
D047	CLOCK SPRING COUPLING	Op. 5580C12 CLOCK SPRING FOR AIR BAG MODULE ON STEERING WHEEL - R.R
H001	IGNITION SWITCH	Op. 5520A18 IGNITION SWITCH CONTACT CARRIER LOCK BARREL - R.R.
M001	BODY COMPUTER	Op. 5505A32 BODY COMPUTER - R.R
P020	RADIO	Op. 5570T80 CAR RADIO EQUIPMENT - R+R
P025	AERIAL FEED/AMPLIFIER	Op. 5570T27 AERIAL SUPPORT - R.R
P030	LEFT REAR SPEAKER	Op. 5570T96 REAR SIDE SPEAKER (ONE), LEFT OR RIGHT- R.R
P031	RIGHT REAR SPEAKER	Op. 5570T96 REAR SIDE SPEAKER (ONE), LEFT OR RIGHT- R.R
P035	SPEAKER ON FRONT DOOR LEFT	Op. 5570T90 FRONT SPEAKER (ONE), LEFT OR RIGHT - R.R
P036	SPEAKER IN RIGHT FRONT DOOR	Op. 5570T90 FRONT SPEAKER (ONE), LEFT OR RIGHT - R.R
P045	LEFT FRONT TWEETER SPEAKER	Op. 5570T92 FRONT TWEETER (ONE), LEFT OR RIGHT - R.R
P046	RIGHT FRONT TWEETER SPEAKER	Op. 5570T92 FRONT TWEETER (ONE), LEFT OR RIGHT - R.R

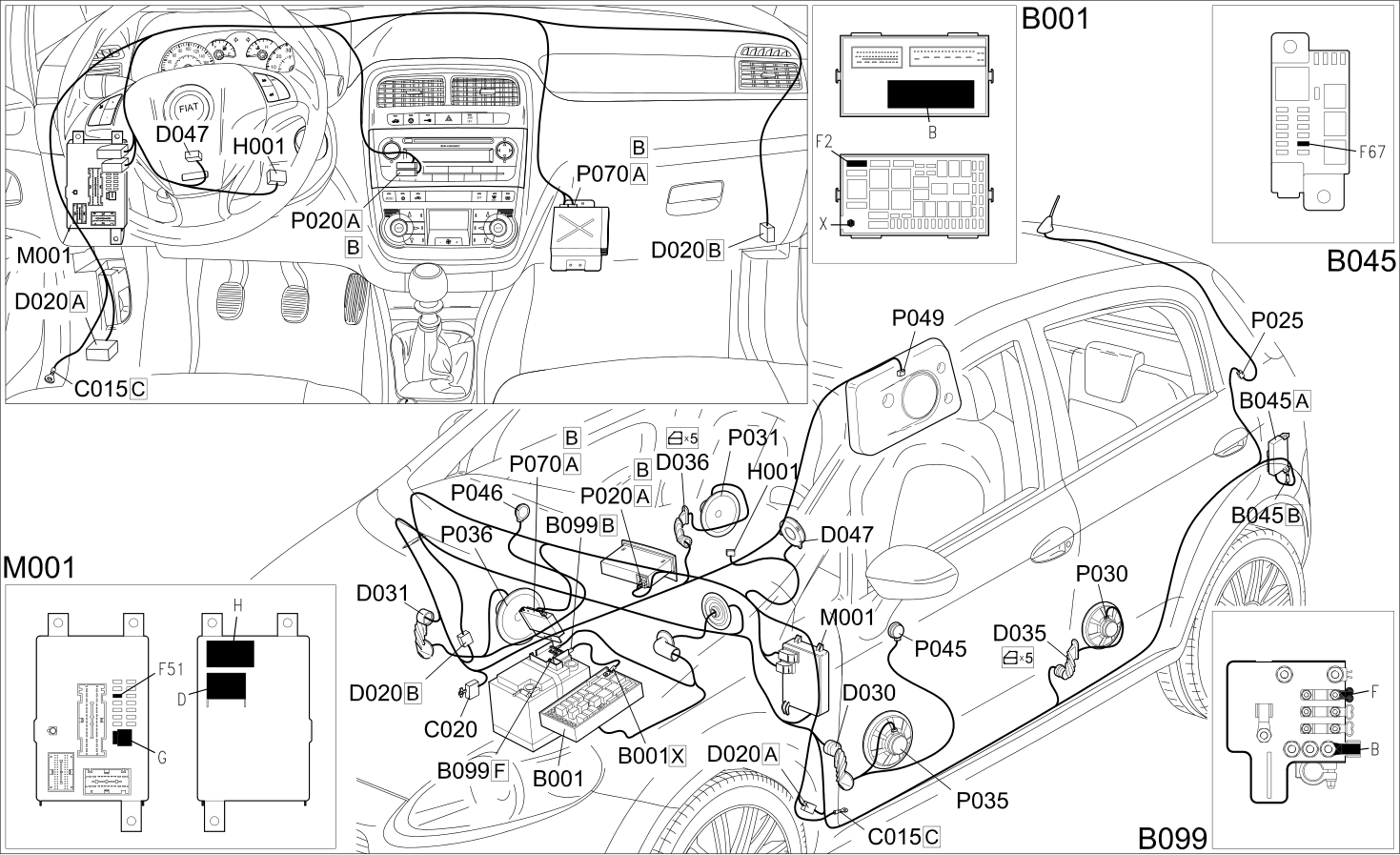

HI-FI – Interscope

COMPONENT LOCATION

Component code	Description	Reference to the operation
B001	JUNCTION UNIT	Op. 5505A13 ADDITIONAL JUNCTION UNIT IN ENGINE COMPARTMENT - R.R.
B045	LUGGAGE COMPARTMENT JUNCTION UNIT (CVB)	Op. 5505A14 SUPPLEMENTARY JUNCTION BOX IN LUGGAGE COMPARTMENT - R.R
B099	MAXI FUSE BOX ON BATTERY	Op. 5530B40 SUPPLY BOX ON BATTERY (LINK BATTERY AND FUSE BOX) - R R
C015	DASHBOARD EARTH, DRIVER'S SIDE
C020	PASSENGER SIDE DASHBOARD EARTH
D020	DASHBOARD/REAR COUPLING
D030	DRIVER'S FRONT DOOR COUPLING
D031	PASSENGER FRONT DOOR COUPLING
D035	LEFT REAR DOOR COUPLING
D036	RIGHT REAR DOOR COUPLING
D047	CLOCK SPRING COUPLING	Op. 5580C12 CLOCK SPRING FOR AIR BAG MODULE ON STEERING WHEEL - R.R
H001	IGNITION SWITCH	Op. 5520A18 IGNITION SWITCH CONTACT CARRIER LOCK BARREL - R.R.
M001	BODY COMPUTER	Op. 5505A32 BODY COMPUTER - R.R
P020	RADIO	Op. 5570T80 CAR RADIO EQUIPMENT - R+R
P025	AERIAL FEED/AMPLIFIER	Op. 5570T27 AERIAL SUPPORT - R.R
P030	LEFT REAR SPEAKER	Op. 5570T96 REAR SIDE SPEAKER (ONE), LEFT OR RIGHT- R.R
P031	RIGHT REAR SPEAKER	Op. 5570T96 REAR SIDE SPEAKER (ONE), LEFT OR RIGHT- R.R
P035	SPEAKER ON FRONT DOOR LEFT	Op. 5570T90 FRONT SPEAKER (ONE), LEFT OR RIGHT - R.R
P036	SPEAKER IN RIGHT FRONT DOOR	Op. 5570T90 FRONT SPEAKER (ONE), LEFT OR RIGHT - R.R
P045	LEFT FRONT TWEETER SPEAKER	Op. 5570T92 FRONT TWEETER (ONE), LEFT OR RIGHT - R.R
P046	RIGHT FRONT TWEETER SPEAKER	Op. 5570T92 FRONT TWEETER (ONE), LEFT OR RIGHT - R.R
P049	REAR CENTRE WOOFER SPEAKER	Op. 5580T40 BOSE SOUND SYSTEM SUBWOOFER - R.R.
P070	RADIO HI-FI AMPLIFIER

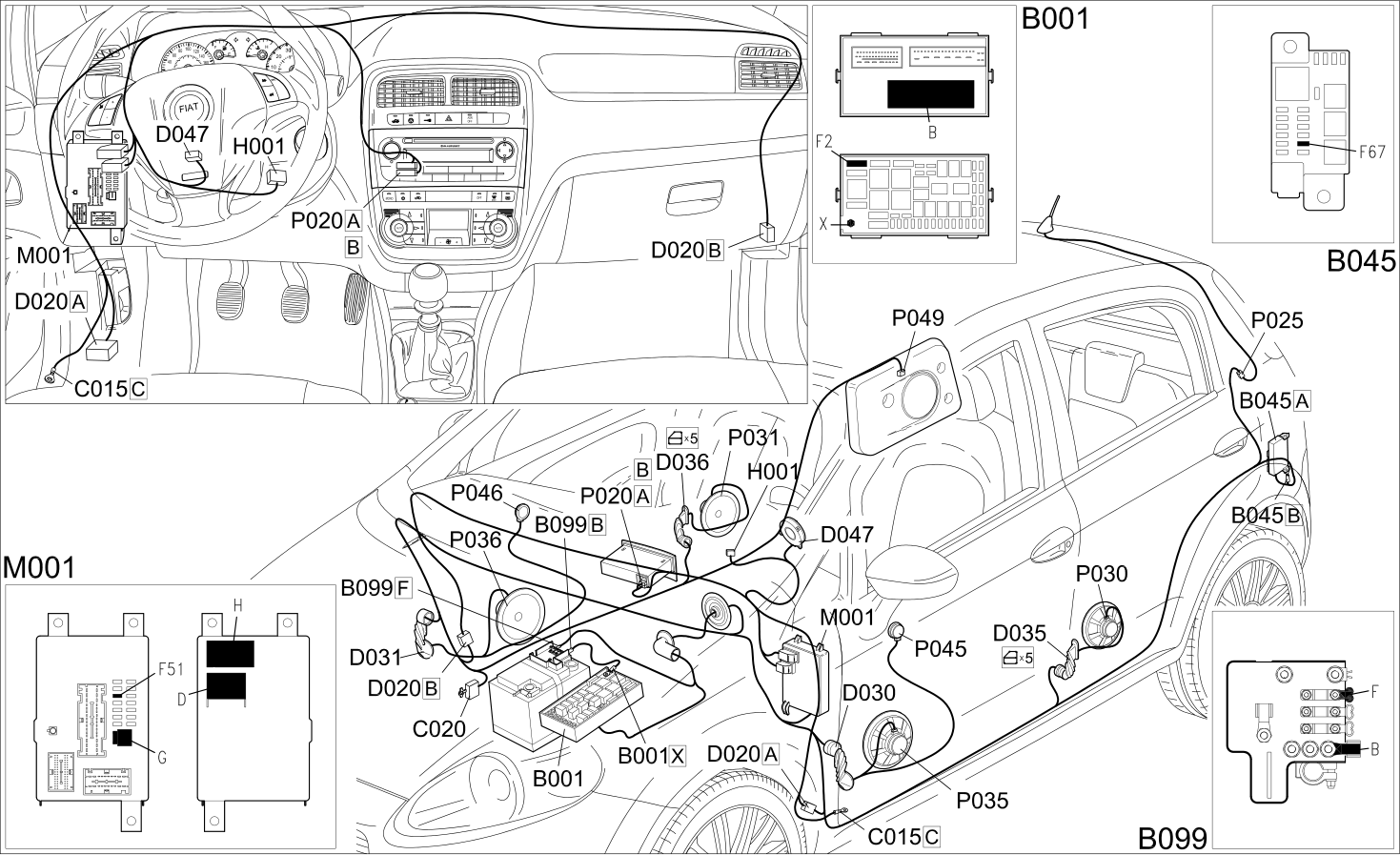

HI-FI

COMPONENT LOCATION

Component code	Description	Reference to the operation
B001	JUNCTION UNIT	Op. 5505A13 ADDITIONAL JUNCTION UNIT IN ENGINE COMPARTMENT - R.R.
B045	LUGGAGE COMPARTMENT JUNCTION UNIT (CVB)	Op. 5505A14 SUPPLEMENTARY JUNCTION BOX IN LUGGAGE COMPARTMENT - R.R
B099	MAXI FUSE BOX ON BATTERY	Op. 5530B40 SUPPLY BOX ON BATTERY (LINK BATTERY AND FUSE BOX) - R R
C015	DASHBOARD EARTH, DRIVER'S SIDE
C020	PASSENGER SIDE DASHBOARD EARTH
D020	DASHBOARD/REAR COUPLING
D030	DRIVER'S FRONT DOOR COUPLING
D031	PASSENGER FRONT DOOR COUPLING
D035	LEFT REAR DOOR COUPLING
D036	RIGHT REAR DOOR COUPLING
D047	CLOCK SPRING COUPLING	Op. 5580C12 CLOCK SPRING FOR AIR BAG MODULE ON STEERING WHEEL - R.R
H001	IGNITION SWITCH	Op. 5520A18 IGNITION SWITCH CONTACT CARRIER LOCK BARREL - R.R.
M001	BODY COMPUTER	Op. 5505A32 BODY COMPUTER - R.R
P020	RADIO	Op. 5570T80 CAR RADIO EQUIPMENT - R+R
P025	AERIAL FEED/AMPLIFIER	Op. 5570T27 AERIAL SUPPORT - R.R
P030	LEFT REAR SPEAKER	Op. 5570T96 REAR SIDE SPEAKER (ONE), LEFT OR RIGHT- R.R
P031	RIGHT REAR SPEAKER	Op. 5570T96 REAR SIDE SPEAKER (ONE), LEFT OR RIGHT- R.R
P035	SPEAKER ON FRONT DOOR LEFT	Op. 5570T90 FRONT SPEAKER (ONE), LEFT OR RIGHT - R.R
P036	SPEAKER IN RIGHT FRONT DOOR	Op. 5570T90 FRONT SPEAKER (ONE), LEFT OR RIGHT - R.R
P045	LEFT FRONT TWEETER SPEAKER	Op. 5570T92 FRONT TWEETER (ONE), LEFT OR RIGHT - R.R
P046	RIGHT FRONT TWEETER SPEAKER	Op. 5570T92 FRONT TWEETER (ONE), LEFT OR RIGHT - R.R
P049	REAR CENTRE WOOFER SPEAKER	Op. 5580T40 BOSE SOUND SYSTEM SUBWOOFER - R.R.

Provision for car ratio

COMPONENT LOCATION

Component code	Description	Reference to the operation
B001	JUNCTION UNIT	Op. 5505A13 ADDITIONAL JUNCTION UNIT IN ENGINE COMPARTMENT - R.R.
B099	MAXI FUSE BOX ON BATTERY	Op. 5530B40 SUPPLY BOX ON BATTERY (LINK BATTERY AND FUSE BOX) - R R
C015	DASHBOARD EARTH, DRIVER'S SIDE
D020	DASHBOARD/REAR COUPLING
D030	DRIVER'S FRONT DOOR COUPLING
D031	PASSENGER FRONT DOOR COUPLING
D035	LEFT REAR DOOR COUPLING
D036	RIGHT REAR DOOR COUPLING
H001	IGNITION SWITCH	Op. 5520A18 IGNITION SWITCH CONTACT CARRIER LOCK BARREL - R.R.
M001	BODY COMPUTER	Op. 5505A32 BODY COMPUTER - R.R
P020	RADIO	Op. 5570T80 CAR RADIO EQUIPMENT - R+R
P025	AERIAL FEED/AMPLIFIER	Op. 5570T27 AERIAL SUPPORT - R.R
P030	LEFT REAR SPEAKER	Op. 5570T96 REAR SIDE SPEAKER (ONE), LEFT OR RIGHT- R.R
P031	RIGHT REAR SPEAKER	Op. 5570T96 REAR SIDE SPEAKER (ONE), LEFT OR RIGHT- R.R
P035	SPEAKER ON FRONT DOOR LEFT	Op. 5570T90 FRONT SPEAKER (ONE), LEFT OR RIGHT - R.R
P036	SPEAKER IN RIGHT FRONT DOOR	Op. 5570T90 FRONT SPEAKER (ONE), LEFT OR RIGHT - R.R
P045	LEFT FRONT TWEETER SPEAKER	Op. 5570T92 FRONT TWEETER (ONE), LEFT OR RIGHT - R.R
P046	RIGHT FRONT TWEETER SPEAKER	Op. 5570T92 FRONT TWEETER (ONE), LEFT OR RIGHT - R.R
