INSTRUMENT LIGHTING - Wiring diagram

Make

Fiat

Model

Idea Factory Service Manual

Year

2003–2012

Section

Interior lighting › INSTRUMENT LIGHTING - Wiring diagram

Wiring diagrams and electrical functionsINSTRUMENT LIGHTING - Wiring diagram

INSTRUMENT LIGHTING - Wiring diagram

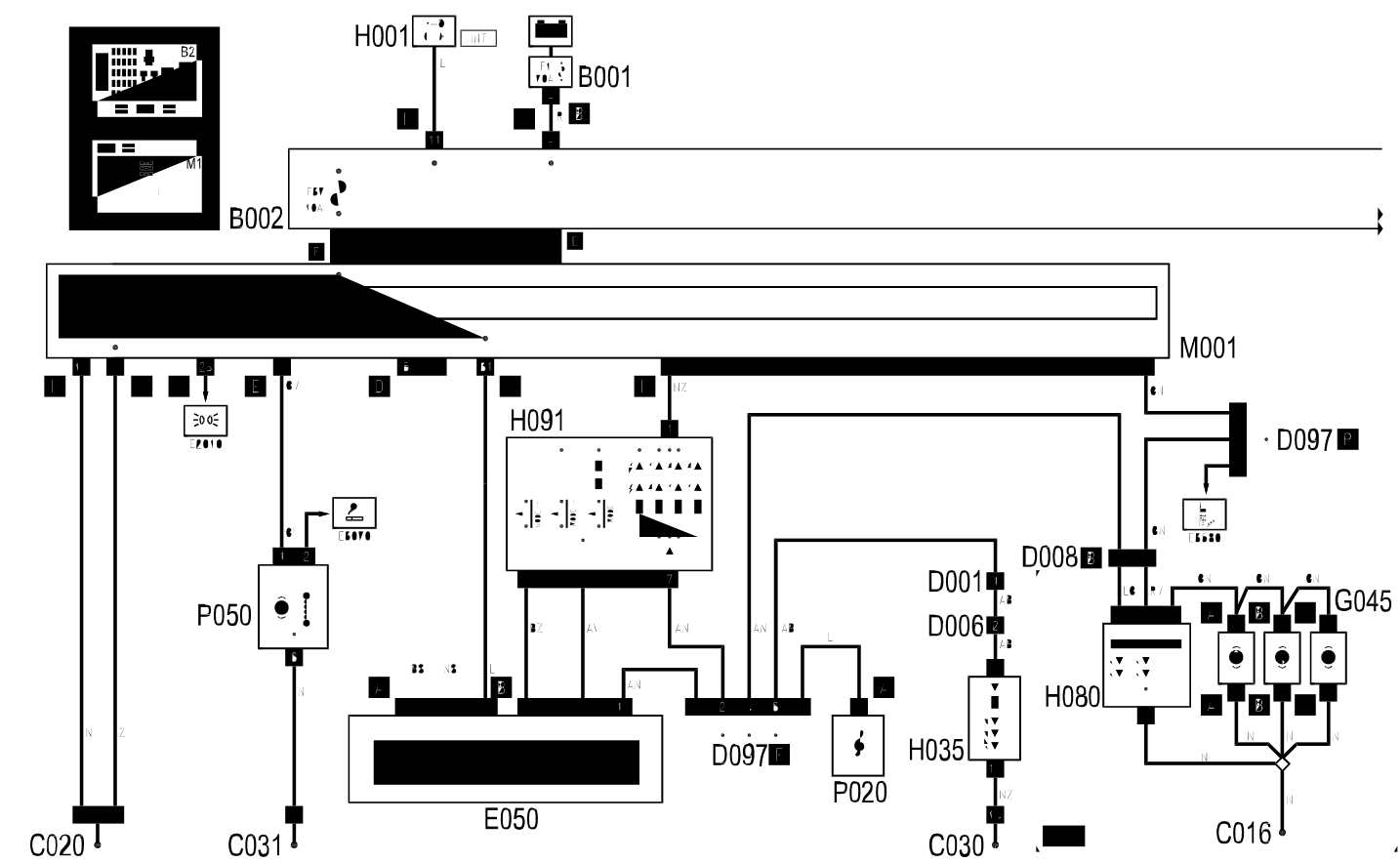

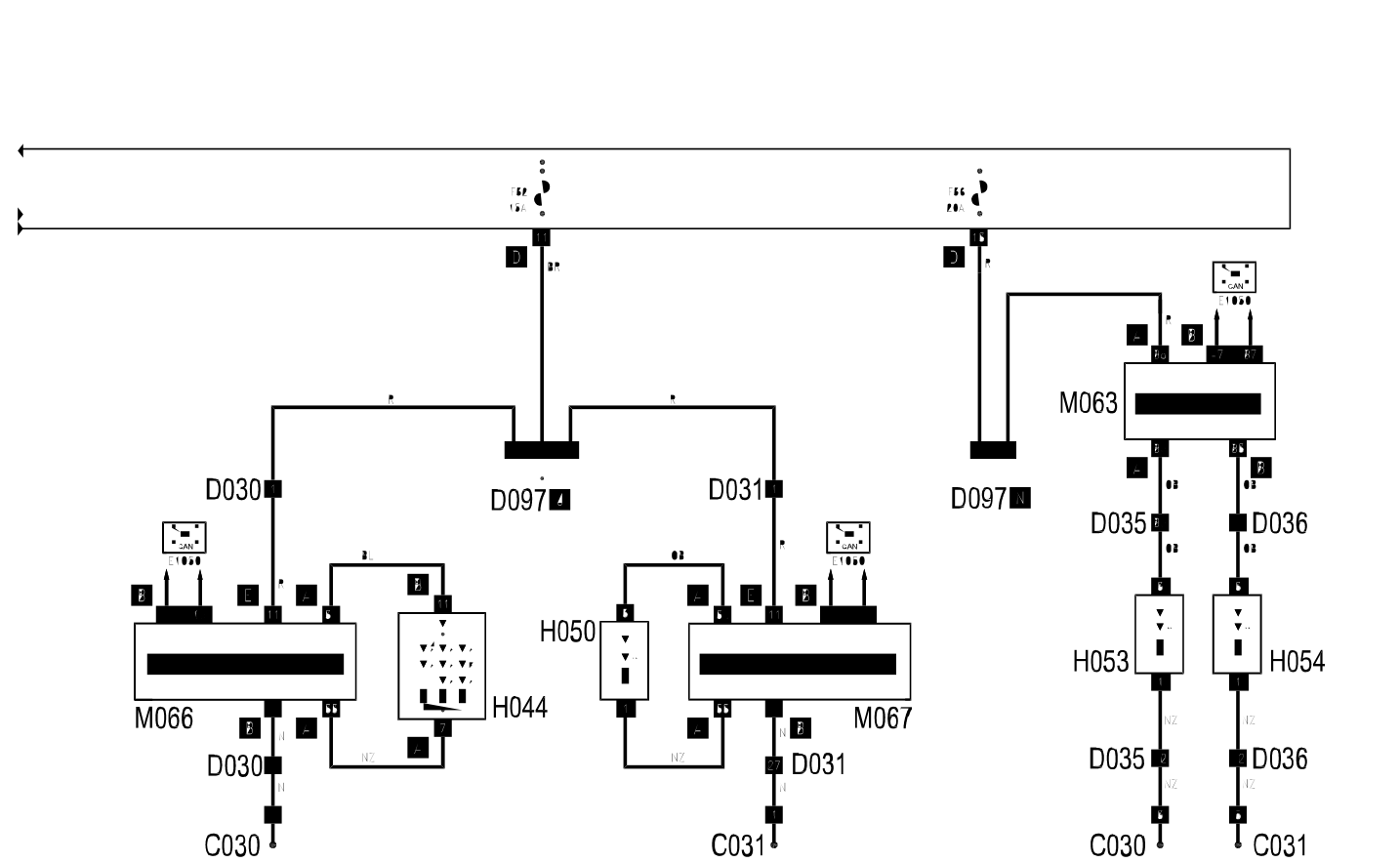

Wiring diagram

COMPONENTS

Component code	Name	Assembly reference
B1	Engine compartment junction unit	5505A
B2	Junction unit under dashboard	5505A
C16	Air conditioning earth
C20	Passenger side dashboard earth
C30	Left rear earth
C31	Rear right earth
D1	Front / dashboard coupling
D6	Front / rear coupling
D8	Air conditioning - heater coupling
D8	Dashboard / air conditioner - heater connection
D30	Rear coupling for /front door. driver's side
D31	Front passenger door/ rear coupling.
D35	Rear / rear door coupling left
D36	Rear/right door coupling right
D97	Short circuiting coupling
E50	Instrument panel	5560B
G45	Air conditioning / heater controls light	5020B
H1	Ignition switch	5520A
H35	Switches assembly on central console	7040L
H44	Driver's side front door electric window controls	7005M
H50	Electric window switch on .front passenger door	7005M
H53	Rear electric window switch. on door	7010M
H54	Switch for rear right electric window. on rear door	7010M
H80	Climate control system controls	5040D
H91	Left controls unit	7040A
M1	Body computer	5505A
M63	Luggage compartment control unit	5505A
M66	Driver's door control unit	5505A
M67	Passenger door control unit
P20	Radio	7040A
P50	Cigarette lighter/power socket	7065C
