Oil exchange sleeve - r r

Operation 1088D47 · Coolant hoses and sleeves

2.4 20v

Removing

- 5530B56 BATTERY DRIP TRAY COVER - R.R..

Disconnect the battery negative terminal.

- 1016A40 ignition coil cover on cylinder head- r+r

- 7055B54 under-engine guard - r r

- 1088E10 radiator cooling fan - r + r

- 1072C44 exhaust manifold heat shield on bulkhead - r+r

- 1080B40 catalytic pre-converter - r r

Position a suitable container to collect the coolant.

Disconnect the lower radiator hose and drain the engine cooling system.

1. Disconnect the cooling supply and return hoses from the heat exchanger and rigid section, then remove them.

1.9 JTD 8v

Removing

- 1016A10 sound-proofing cover - r + r

- 7055B54 under-engine guard - r r

Position a suitable container to collect the coolant.

Disconnect the lower radiator hose and drain the engine cooling system.

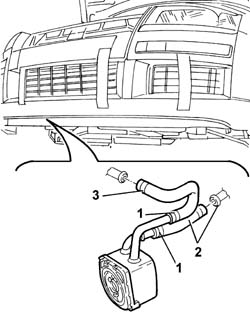

1. Disconnect the coolant supply and return hoses from the heat exchanger.

Lower the lift.

2. Disconnect the hose from the rigid section of pipe.

3. Disconnect the hose connected to the water pump rigid inlet pipe, then remove the two supply and return hoses from the heat exchanger.

2.4 20v

Refitting

Fit the supply and return hoses on the heat exchanger.

- 1080B40 catalytic pre-converter - r r

- 1072C44 exhaust manifold heat shield on bulkhead - r+r

- 1088E10 radiator cooling fan - r + r

- 7055B54 under-engine guard - r r

- 1016A40 ignition coil cover on cylinder head- r+r

Connect the battery negative terminal.

- 5530B56 BATTERY DRIP TRAY COVER - R.R..

- 0010T21 coolant check density and top up if necessary

1.9 JTD 8v

Refitting

Fit the supply and return hoses on the heat exchanger.

Connect the hoses to the rigid section of the pipe.

Connect the coolant supply and return hoses to the heat exchanger.

- 0010T21 coolant check density and top up if necessary

- 1016A10 sound-proofing cover - r + r

- 7055B54 under-engine guard - r r
