Camshaft - remove

Make
Land Rover
Model
Engines 300Tdi Engine
Section
CRANKSHAFT, CAMSHAFT, PISTONS AND CYLINDER BLOCK › Camshaft - remove
OVERHAULCamshaft - remove
Camshaft - remove – Land Rover 300Tdi Engine

ENGINE

OVERHAUL

73

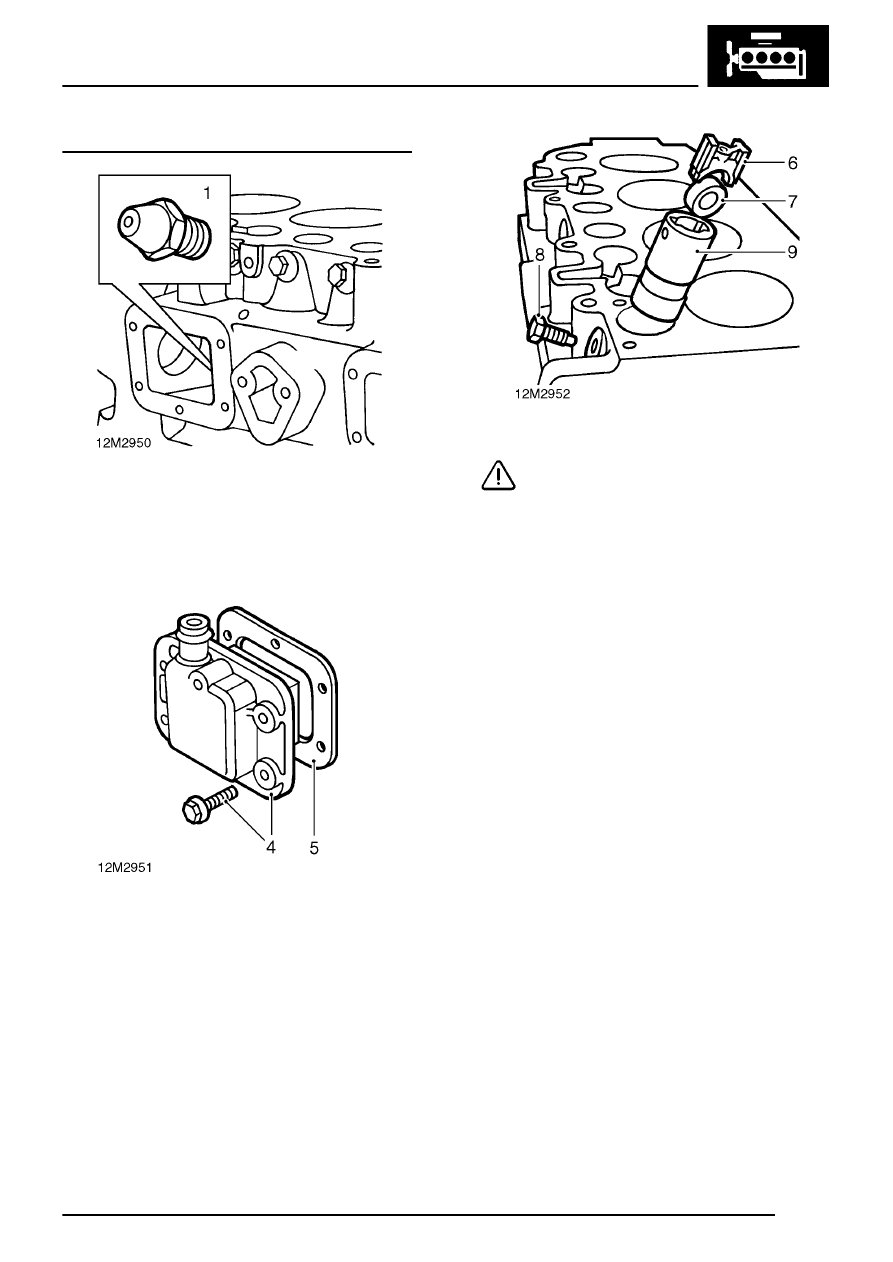

Camshaft - remove

1. Remove oil jet tube.
2. Clean area around baffle plate.
3. Note fitted position of 3 bolts securing baffle

plate.

4. Remove 3 bolts securing baffle plate to

cylinder block, remove plate.

5. Remove and discard gasket.

CAUTION: Do not remove cam follower
guide retaining bolts until slides and
rollers have been removed, keep

components of each cam follower assembly in
their fitted order.

6. Using long nosed pliers, remove cam follower

slide.

7. Remove roller and suitably identify which side

of roller faces towards front of cylinder block.

8. Remove and discard bolt retaining cam

follower guide.

9. Remove cam follower guide.

10. Repeat above procedures for remaining cam

follower assemblies.
