Headlamp

HEADLAMP

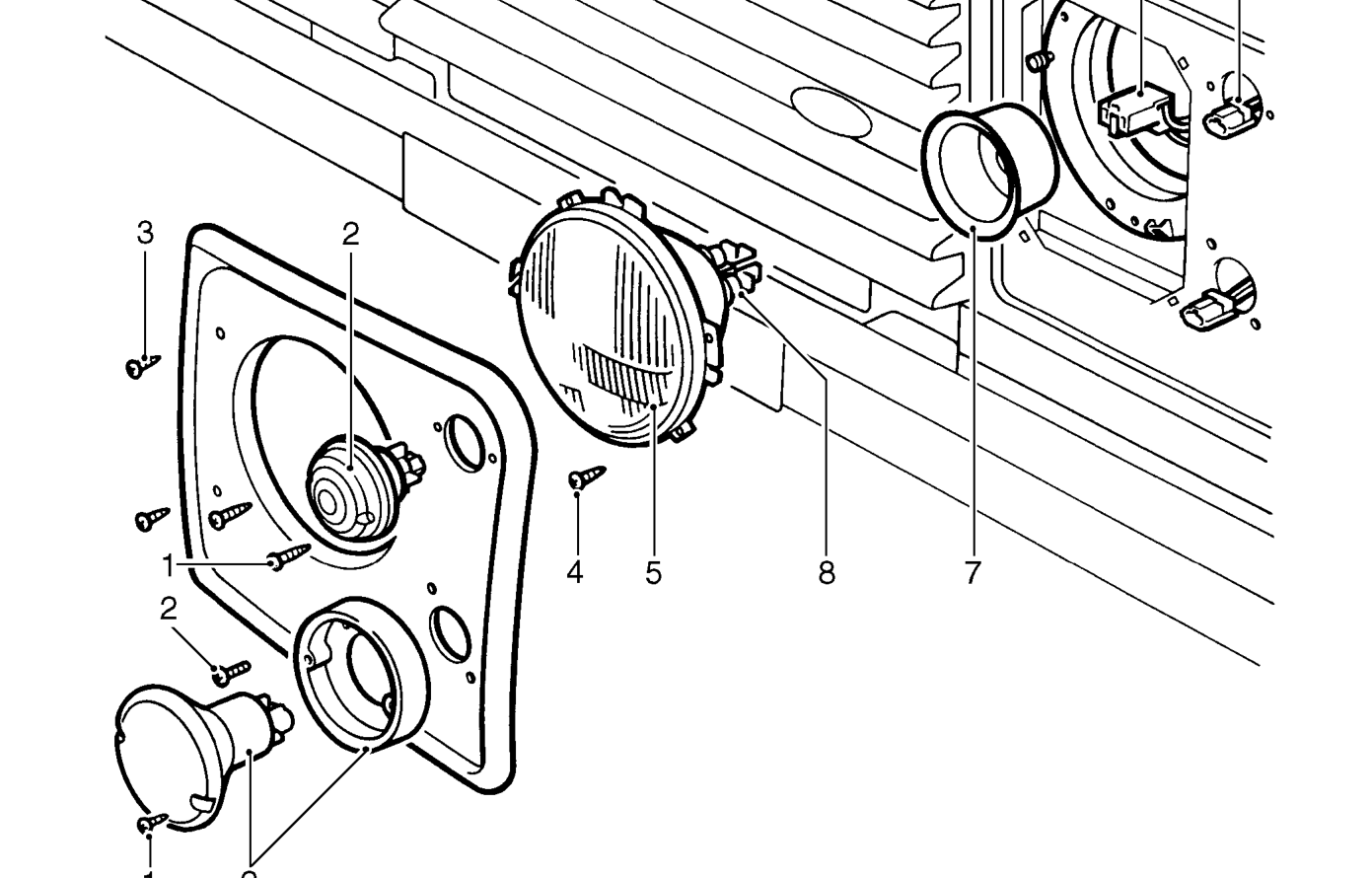

Service repair no - 86.40.02

Remove Refit

1. Remove screws retaining side and direction indicator lamps. 10. Locate headlamp in body and rotate
2. Withdraw lamp units and disconnect plugs. Remove 2 screws and release indicator lamp 11. Fit headlamp retaining screws. boss from headlamp finisher. 12. Fit headlamp finisher, side and direction
3. Remove 2 screws and withdraw headlamp finisher. 13. Check main beam alignment.
4. Remove 2 headlamp retaining screws.
5. Rotate headlamp clockwise, disengage from body, and lift out headlamp.
6. Disconnect multi-plug to release headlamp.
7. Remove rubber cover.
8. Remove headlamp assembly.
9. Fit rubber cover and reconnect multi-plug.

anti-clockwise to engage.

indicator lamps. See Headlamp beam alignment
