INTERIOR LAMP - BULB REMOVAL INTERIOR LAMP

Service repair no - 86.45.01 Service repair no - 86.45.02

Remove Remove

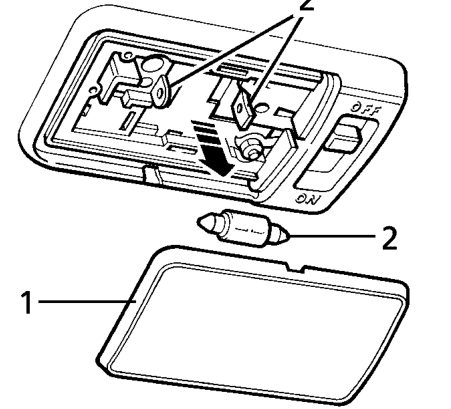

Remove remove – Service repair no - 86.45.01 Service repair no - 86.45.02
  1. Prise lens from lamp unit.
  2. Spread bulb holder contacts and release bulb.

Refit

  1. Spread bulb holder contacts and fit new bulb.
  2. Fit lamp lens.

Refit

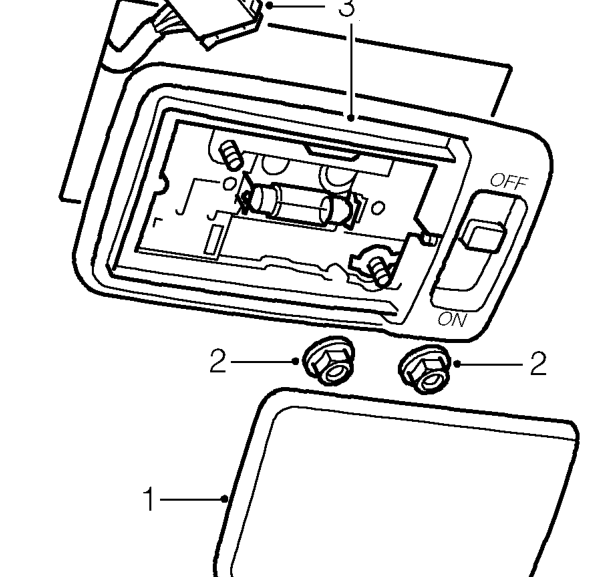

Remove remove – Fit lamp lens.
  1. Prise lens cover from lamp unit.
  2. Remove 2 nuts securing lamp unit to headlining and roof mounting bracket.
  3. Remove lamp unit from mounting bracket studs and disconnect harness plug.
  4. Remove interior lamp.
  5. Reconnect harness plug and locate lamp unit on mounting bracket studs. Ensure lamp switch eyelet is correctly seated on lamp unit base.
  6. Secure lamp unit to mounting bracket and fit lamp lens.
