Cigar lighter hazard warning switch

CIGAR LIGHTER HAZARD WARNING SWITCH

Service repair no - 86.65.60 Service repair no - 86.65.50

Remove Remove

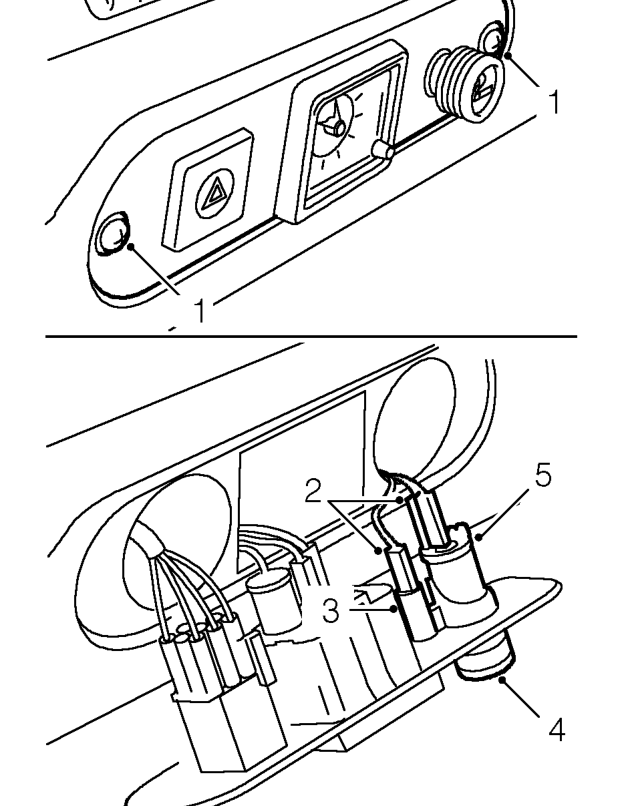

1. Remove 2 screws and withdraw switch panel from lower fascia.
2. Disconnect electrical leads from switch housing, including illumination bulb.
3. Release 2 retaining tags and remove bulb holder from switch housing.
4. Remove cigar lighter from switch housing.
5. Press in retaining tags and withdraw housing Refit from switch panel.

Refit

6. Fit housing to switch panel.
7. Fit bulb holder to switch housing.
8. Connect electrical leads and illumination bulb.
9. Insert cigar lighter into switch housing.
10. Fit switch panel to lower fascia.

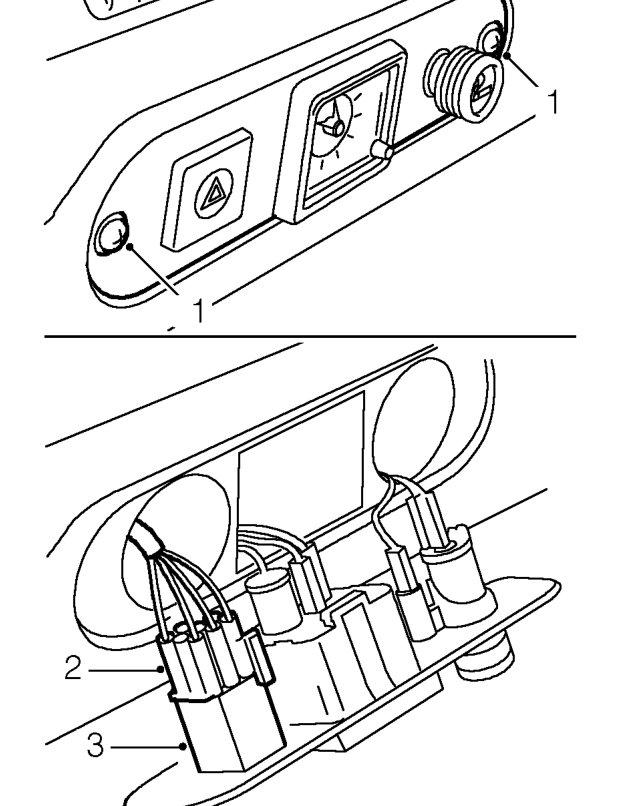

1. Remove 2 screws and withdraw switch panel from lower fascia.
2. Disconnect multiplug from hazard warning switch.
3. Depress retainers and withdraw switch from panel.
4. Fit new switch to switch panel.
5. Connect multiplug to switch.
6. Fit switch panel.
