STARTER SWITCH WINDSCREEN WIPER/WASHER SWITCH

Service repair no - 86.65.03 Service repair no - 84.15.34

Remove Remove

  1. Remove instrument panel. See INSTRUMENTS, Repair, Instrument panel
  2. Remove steering column nacelle.
  3. Remove steering column nacelle.

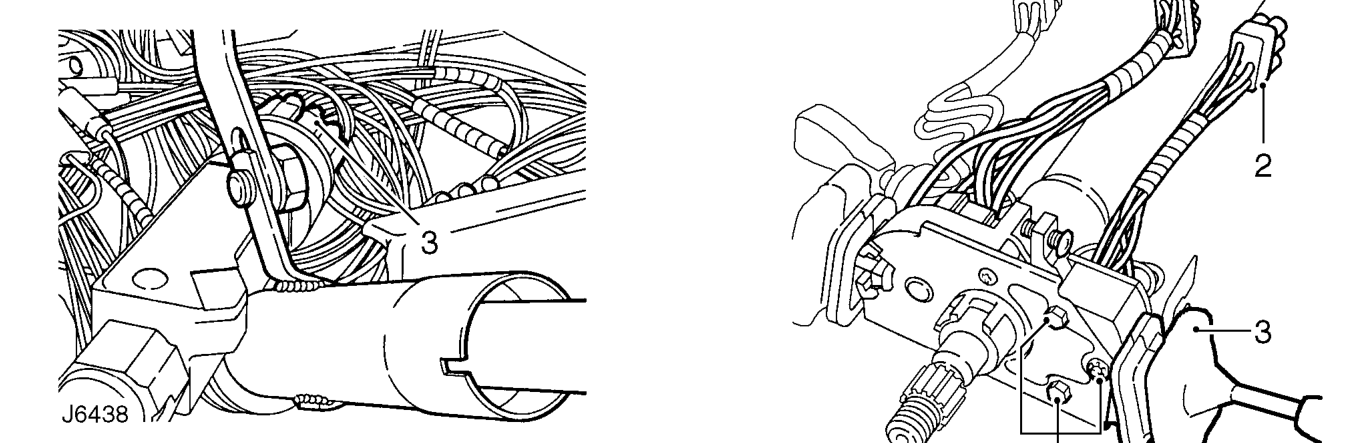

Remove remove – Remove steering column nacelle.
  1. Note position of harness leads on back of starter switch and disconnect lukars.
  2. Remove single screw and withdraw starter switch from steering column lock.

Refit Refit

  1. Fit new switch in steering column lock.
  2. Connect harness leads to starter switch.
  3. Fit steering column nacelle.
  4. Fit instrument panel. See INSTRUMENTS, Repair, Instrument panel; Refit
  5. Disconnect switch multi-plug from main harness.
  6. Remove 2 screws and star washer securing switch to mounting bracket.
  7. Remove switch complete with harness.
  8. Fit new switch to mounting bracket.
  9. Reconnect switch multi-plug.
  10. Fit steering column nacelle.
