HIGH LEVEL STOP LAMP - HARDTOP RADIO SPEAKER - REAR

Service repair no - 86.41.32 Service repair no - 86.50.12

Remove Remove

Remove remove – Service repair no - 86.41.32 Service repair no - 86.50.12

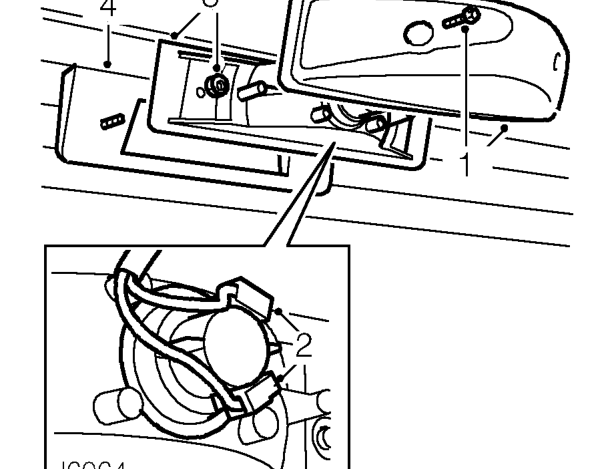

  1. Remove 2 screws and remove stop lamp cover.
  2. Disconnect Lucars from bulb holder.
  3. Unscrew 2 nuts and remove lamp unit from fixing studs and rubber gasket.
  4. Remove gasket.

Refit

  1. Position gasket and stop lamp. Secure with two

Refit

nuts.

  1. Connect Lukars to bulb holder.
  2. Position cover and secure with screws.
  3. Raise rear seat cushion and fit stowage strap.
Remove remove – Raise rear seat cushion and fit stowage strap.

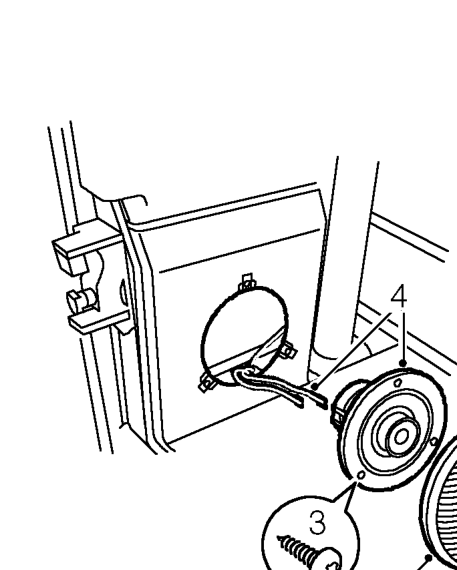

  1. Carefully prise grille from speaker .
  2. Remove 3 screws and withdraw speaker from trim panel.
  3. Disconnect two Lucars and remove speaker.
  4. Connect Lucars, position speaker and secure with screws.
  5. Position grille and press firmly to secure.
