ElectricalWarning lamp assembly instrument illumination - bulb

WARNING LAMP ASSEMBLY INSTRUMENT ILLUMINATION - BULB

Service repair no - 86.45.60 - Warning lamp Service repair no - 86.45.48 assembly Service repair no - 86.45.61 - Warning lamp bulb Remove renewal

Remove

  1. Disconnect battery.

Refit

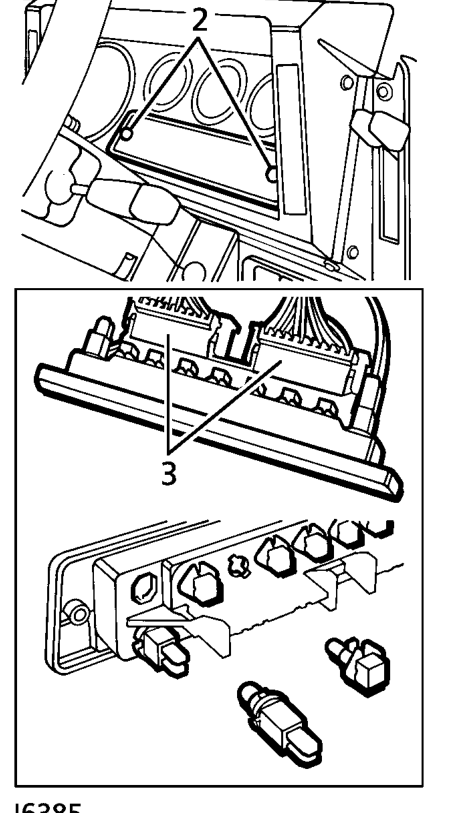

Warning lamp assembly instrument illumination - bulb – Disconnect battery.
  1. Remove 2 screws and withdraw warning light assembly from instrument panel.
  2. Remove multi-plug to give access to warning lamp bulbs.
  3. Twist bulb holder and pull it from its socket.
  4. Pull bulb from holder.

Refit

  1. Fit new bulb and refit holder.
  2. Fit multi-plug.
  3. Fit warning lamp assembly to instrument panel
  4. Reconnect battery.
  5. Remove 4 screws retaining instrument panel.
  6. Release panel from fitted position to gain access to bulbs.
  7. Pull bulb holder from gauge, twist bulb holder and pull from socket.
  8. Pull bulb from holder.
  9. Fit new bulb and refit holder.
  10. Position instrument panel and secure with screws.
