Starter switch windscreen wiper/washer switch (page 3 of 3)

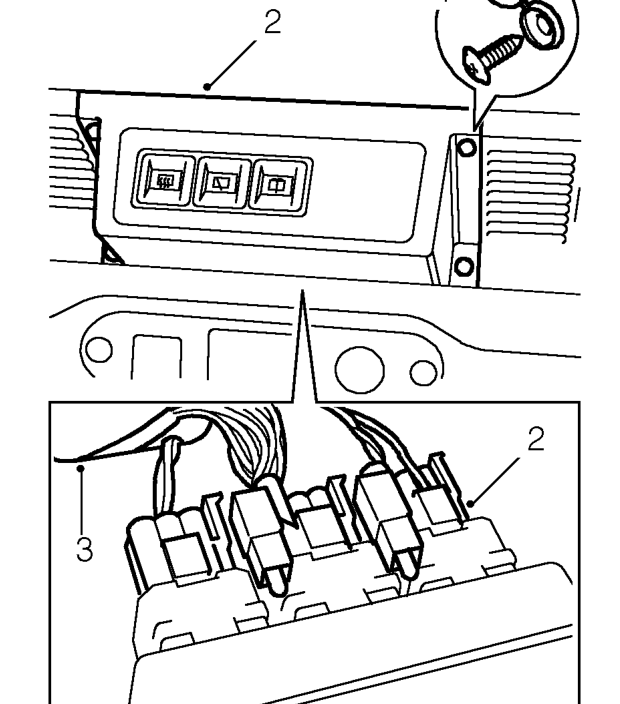

SWITCH PANEL - REAR DOOR SERVICES HEATED REAR SCREEN, REAR WIPER AND WASHER SWITCHES Service repair no - 86.65.78 Service repair no - 86.65.36 - Heated rear screen Remove Service repair no - 84.35.33 - Rear wiper Service repair no - 84.30.27 - Rear washer

Remove

1. Release screw caps from top fixings and remove screws. Prise out 2 trim studs securing bottom of switch panel to fascia.
2. Withdraw switch panel and disconnect multi-plugs from switches and module.
3. Pull harness multi-plugs through aperture in base of panel. Refit

Refit

4. Feed harness into switch panel and reconnect multi-plugs.
5. Position switch panel on fascia and secure with screws and trim studs.

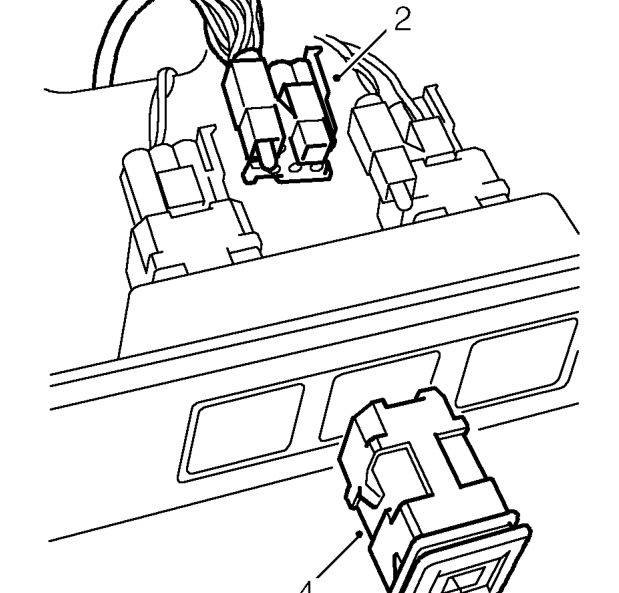

1. Remove rear door switch panel. See Switch panel - rear door services

2. Disconnect multi-plug from rear of switch.
3. Press in retaining lugs and push switch through panel aperture.
4. Remove switch.
5. Fit new switch into switch panel.
6. Reconnect switch multi-plug .
7. Fit switch panel to fascia. see86rep>Switch panel - rear door services
