CAMSHAFT POSITION (CMP) SENSOR KNOCK SENSOR - LH

Service repair no - 18.30.24 Service repair no - 18.30.28

Remove

  1. Disconnect battery negative lead.

Remove

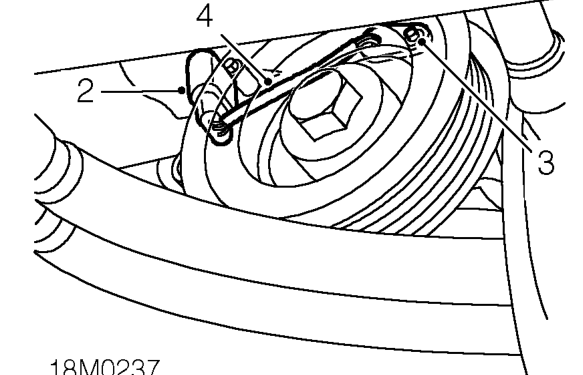

Camshaft position (cmp) sensor knock sensor - lh – Disconnect battery negative lead.
  1. Release sensor multiplug from clip and disconnect multiplug.
  2. Remove bolt securing sensor to front cover.
  3. Remove sensor.
  4. Remove and discard ’O’ ring.

Refit

  1. Clean sensor and mating face on front cover.
  2. Lubricate and fit ’O’ ring to sensor.
  3. Fit sensor, fit bolt and tighten to 8 Nm, 6lbf ft.
  4. Connect sensor multiplug and secure to bracket.

Refit

  1. Reconnect battery negative lead.
  • CAUTION: Due to the sensitivity of the
  • sensor, do not apply tape or sealant to
  • sensor threads.
  1. Raise vehicle on ramp [hoist].
Camshaft position (cmp) sensor knock sensor - lh – Raise vehicle on ramp [hoist].
  1. Depress spring clip and disconnect multiplug from LH knock sensor.
  2. Remove sensor from engine.
  3. Clean mating faces of sensor and engine.
  4. Fit sensor and tighten to 16 Nm, 22 lbf ft.
  • CAUTION: Failure to tighten sensor to
  • correct torque will result in malfunction or
  • sensor damage.
  1. Connect multiplug to sensor.
  2. Lower vehicle.
