ELECTRONIC CONTROL MODULE (ECM) INTAKE AIR TEMPERATURE (IAT) SENSOR

Service repair no - 18.30.01 Service repair no - 18.30.09

Remove Remove

Remove remove – Service repair no - 18.30.01 Service repair no - 18.30.09

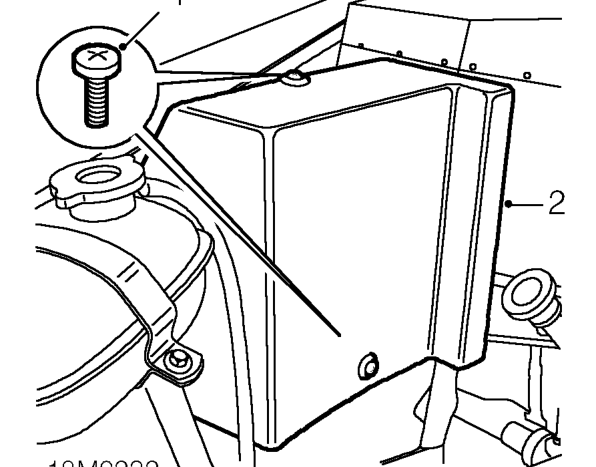

  1. Remove 2 screws securing ECM cover.
  2. Remove cover.

Refit

Remove remove – Remove cover.

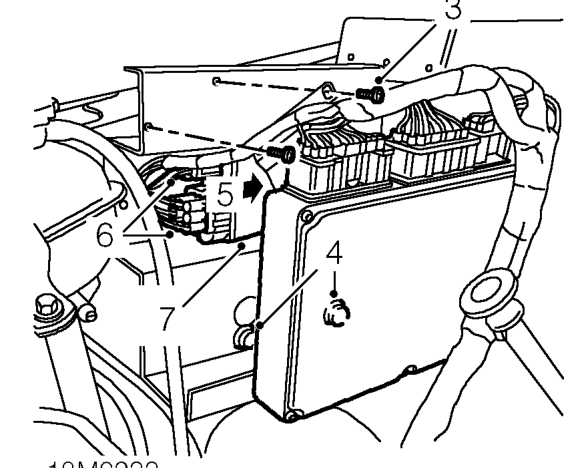

  1. Disconnect 3 multiplugs from ECM.
  2. Remove 2 screws securing ECM.
  3. Release ECM from 2 lower retainers.
  4. Remove ECM.

Refit

  1. Position ECM and secure to lower retainers.
  2. Fit and tighten screws securing ECM.
  3. Connect multiplugs.
  4. Fit cover and secure with screws.
Remove remove – Fit cover and secure with screws.

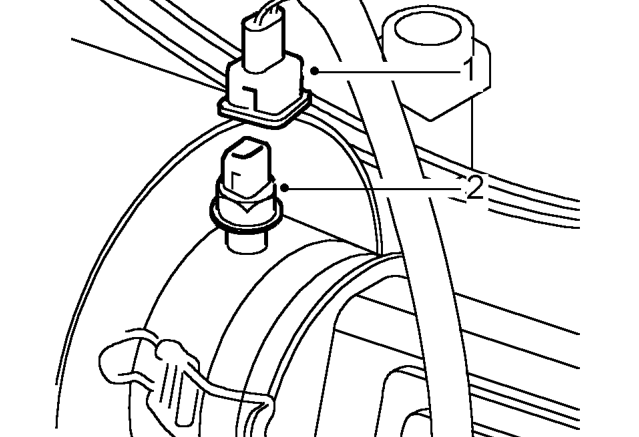

  1. Disconnect multiplug from IAT sensor.
  2. Remove IAT sensor from air filter housing.
  3. Clean sensor and mating face on filter housing.
  4. Fit sensor and tighten to 8 Nm, 6 lbf ft.
  5. Connect multiplug.
