ECU - ROUGH ROAD DETECTION Refit

Service repair no - 19.80.03

Remove

  1. Disconnect battery negative lead.

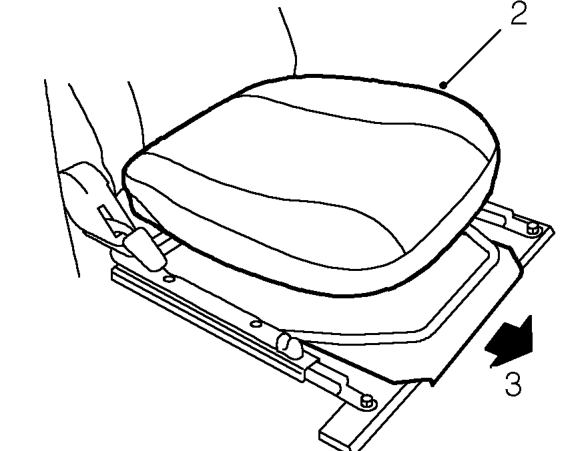

  2. Position rear edge of passenger seat cushion to
  3. Reconnect battery negative lead.
Ecu - rough road detection refit – Reconnect battery negative lead.
  1. Release front edge of passenger seat cushion and remove cushion.
  2. Release clip and remove ECU cover plate.
Ecu - rough road detection refit – Release clip and remove ECU cover plate.

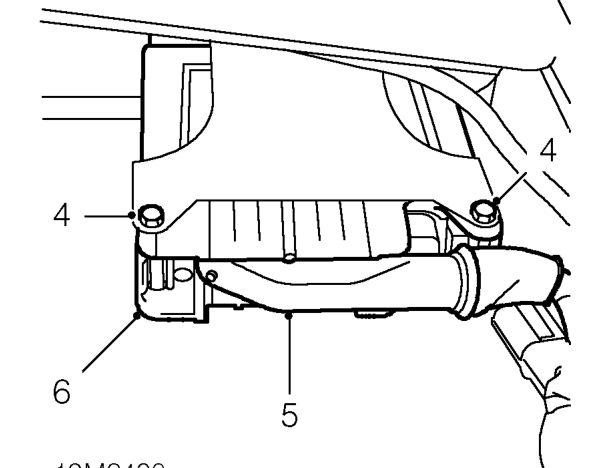

  1. Remove 2 bolts securing ECU to mounting bracket and collect nuts.
  2. Remove ECU from mounting bracket and disconnect multiplug.
  3. Remove ECU.
  4. Fit ECU, connect multiplug and position to mounting bracket.
  5. Secure ECU mounting bracket with nuts and bolts.
  6. Fit ECU cover plate and secure with clip.

seat frame and secure front edge to clips.
