WARNING: Support on safety stands.

19. Position brake hose to mounting bracket and WHEEL SPEED SENSOR - REAR secure with nut.
20. Connect brake pipe to hose and, using 2 Service repair no - 19.80.02 spanners, tighten union.
21. Remove clamp from brake hose. Remove
22. Ensure sensor body is clean and coat with EP 90 oil.
23. Fit sensor through bush until it contacts the reluctor ring. The sensor will be ’knocked-back’ to the correct position when the vehicle is driven.
24. Route sensor lead up through engine compartment and secure cable ties.
25. Lower vehicle.
26. Connect sensor multiplug and secure to clip.
27. Reconnect battery negative lead.
28. Bleed brake system. See BRAKES, Repair, brake system bleed

• CAUTION: If a sensor is removed for any
• reason, a NEW sensor bush and seal must
• be fitted.

1. Disconnect battery negative lead.
2. Raise rear of vehicle.

WARNING: Support on safety stands.

3. Remove both rear road wheels.

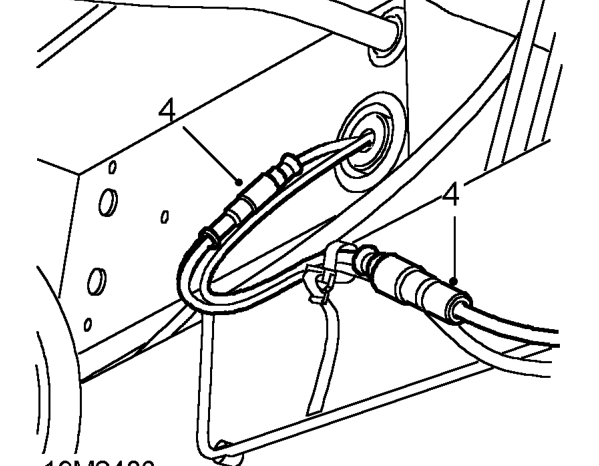

4. Disconnect sensor multiplugs at RH side of chassis.

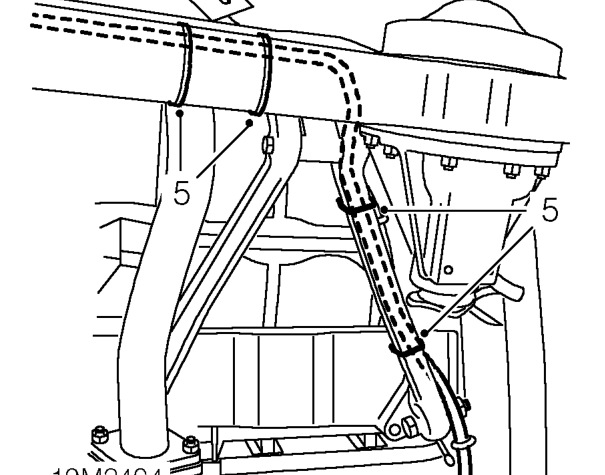

5. Release cable ties securing sensor harness to rear suspension and axles.
