Fuel systemInertia fuel shut off switch relay module

INERTIA FUEL SHUT OFF SWITCH RELAY MODULE

Service repair no - 19.22.09 Service repair no - 18.30.71

Remove Remove

  1. Disconnect battery negative lead.

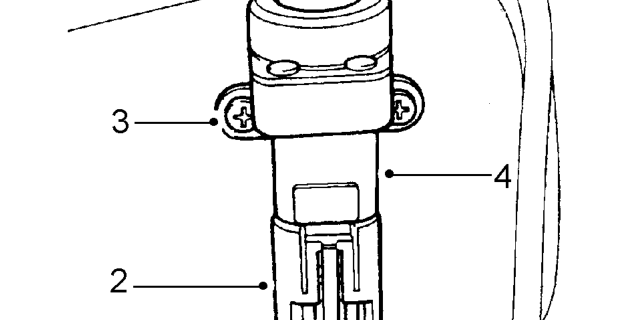

Remove remove – Disconnect battery negative lead.
  1. Disconnect multiplug from inertia fuel shut off switch.
  2. Remove 2 screws securing shut off switch to mounting bracket.
  3. Remove shut off switch.

Refit

  1. Position fuel shut off switch to mounting bracket and secure with screws.
  2. Connect multiplug to inertia switch.
  3. Reconnect battery negative lead.

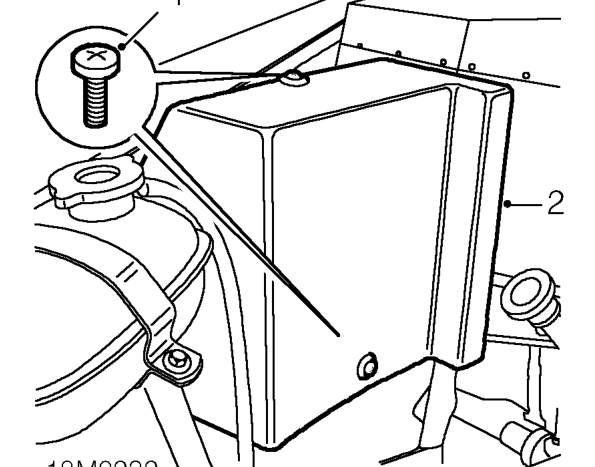

Remove remove – Reconnect battery negative lead.
  1. Remove 2 screws securing ECM cover.
  2. Remove cover.

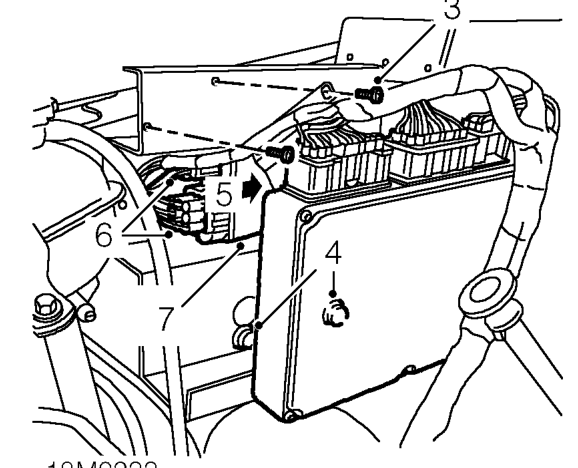

Remove remove – Remove cover.
  1. Remove 2 screws securing ECM.
  2. Release ECM from 2 lower retainers and move aside for access to relay module.
  3. Release relay module from bracket.
  4. Disconnect 2 multiplugs from module.
  5. Remove relay module.
