Refit fuel temperature sensor

Refit FUEL TEMPERATURE SENSOR

5. Clean area around cable hole in bulkhead. Service repair no - 19.22.08
6. Position cable and secure to bulkhead.
7. Clean and lubricate clevis pin. Remove
8. Align inner cable to throttle pedal, fit clevis pin and secure with NEW split pin.
9. Secure outer cable to abutment bracket.
10. Clean and lubricate clevis pin.
11. Adjust outer cable and align inner cable yoke to for this operation. throttle lever.
12. Fit clevis pin and secure with new split pin.
13. Adjust outer cable to give 1.6 mm, 0.06 inch of free play in inner cable.
14. Check throttle operation.

Refit

• NOTE: Because fuel leakage will not occur
• when sensor is removed, it is not
• necessary to depressurise the fuel system

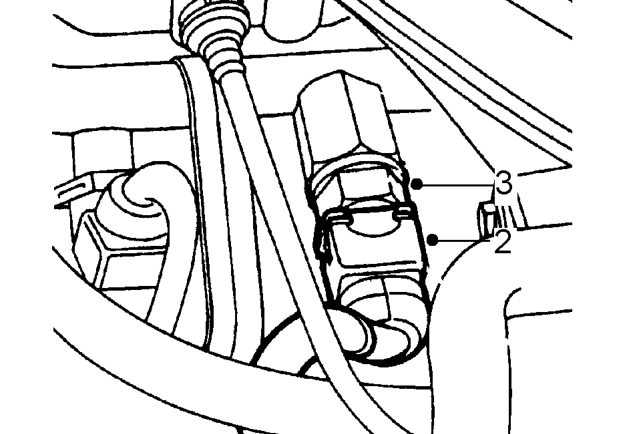

1. Release and move brake servo vacuum pipe aside for access to fuel temperature sensor.

2. Disconnect multiplug from fuel temperature sensor.
3. Remove sensor.
4. Clean threads of sensor and mating face on fuel rail,
5. Fit sensor and tighten to 17Nm, 13 lbf ft.
6. Connect multiplug and vacuum pipe.
