Refit air cleaner

Refit AIR CLEANER

8. Position relay module Service repair no - 19.10.01
9. Connect multiplugs and secure module to bracket. Remove
10. Position ECM and secure to lower retainers.
11. Fit and tighten screws securing ECM.
12. Fit cover and tighten screws.

Do not carry out further dismantling if component is removed for access only.

Refit

10. Clean MAF sensor and mating face.
11. Fit NEW ’O’ ring, fit sensor and secure toggle
12. Connect multiplug to IAT sensor.
13. Connect air intake hose and tighten clip.

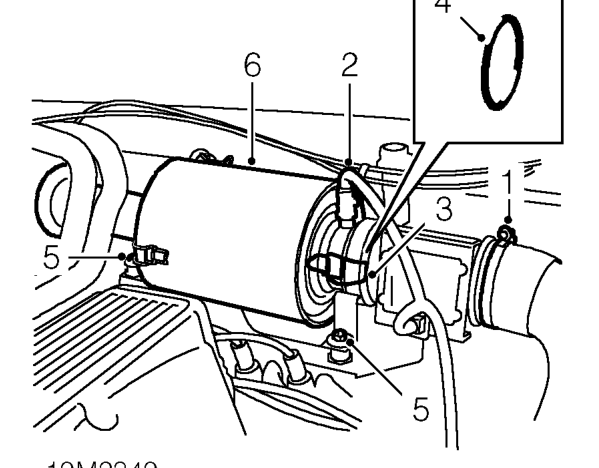

1. Loosen clip securing intake hose to MAF sensor and disconnect hose.
2. Disconnect multiplug from IAT sensor.
3. Release 2 toggle clips and release MAF sensor from air cleaner.
4. Remove ’O’ ring and carefully place sensor aside.
5. Remove 3 nuts securing air cleaner to mounting rubbers.
6. Remove air cleaner assembly.
7. Remove IAT sensor.
8. Clean threads of IAT sensor and fit sensor to air cleaner.
9. Position air cleaner to mountings and fit and tighten nuts.

clips.
