Land Rover Discovery Body Repair Manual (1995 on)03 · Supplementary restraint system
03 · Body & interior

Refit rotary coupler (page 2 of 2)

Make
Land Rover
Model
Discovery Body Repair Manual
Year
1995 on
Section
Repair
Supplementary restraint systemRefit rotary coupler · page 2 of 2
Diagram

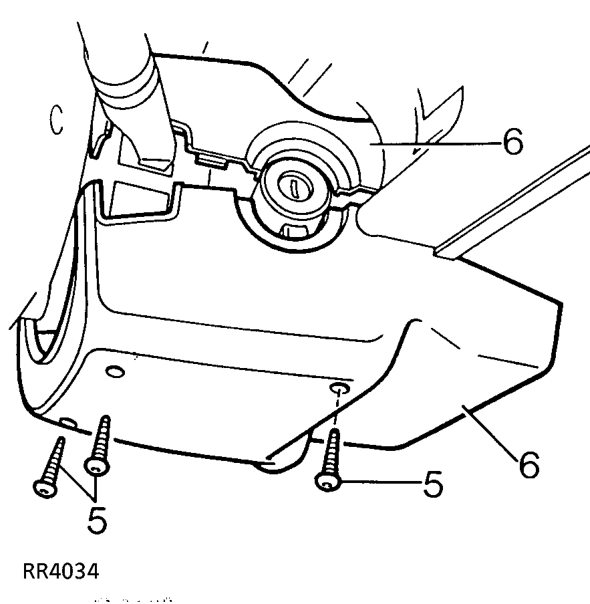

  1. Remove 3 screws securing lower half of nacelle to steering column.
  2. Separate the 2 halves of the nacelle and remove from steering column.
  3. Remove rotary coupler from column switch
Remove rotary coupler from column switch

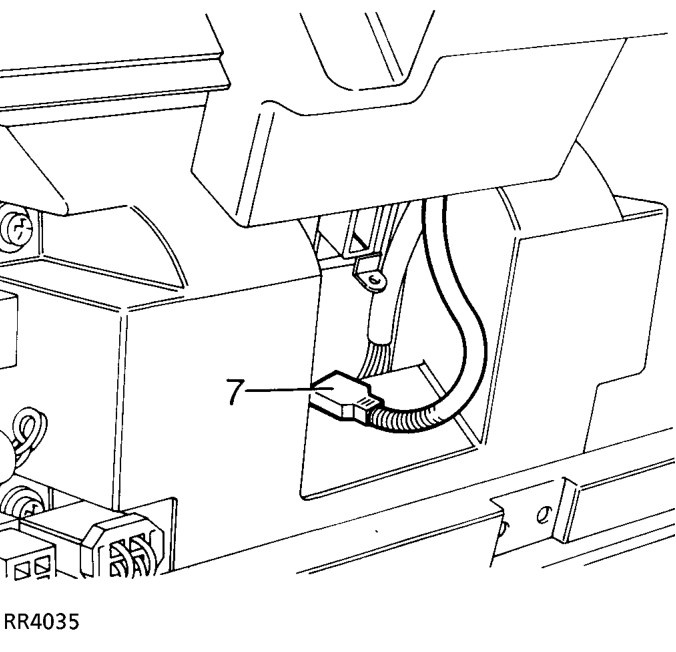

  1. Release airbag harness connector from bracket and disconnect.
Release airbag harness connector from bracket and disconnect.

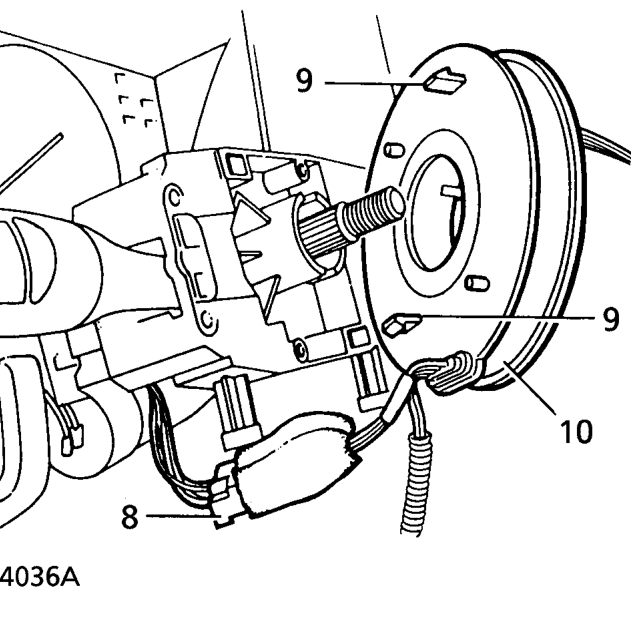

  1. Disconnect rotary coupler connector from steering column harness.
  2. Release 2 clips securing rotary coupler to column switch assembly.

assembly.
