REPAIRS

Body control unit (BCU)

$% 86.55.75

Remove

  1. Release fixings and remove battery cover.
  2. Disconnect battery earth lead.
Body control unit (bcu) – Disconnect battery earth lead.

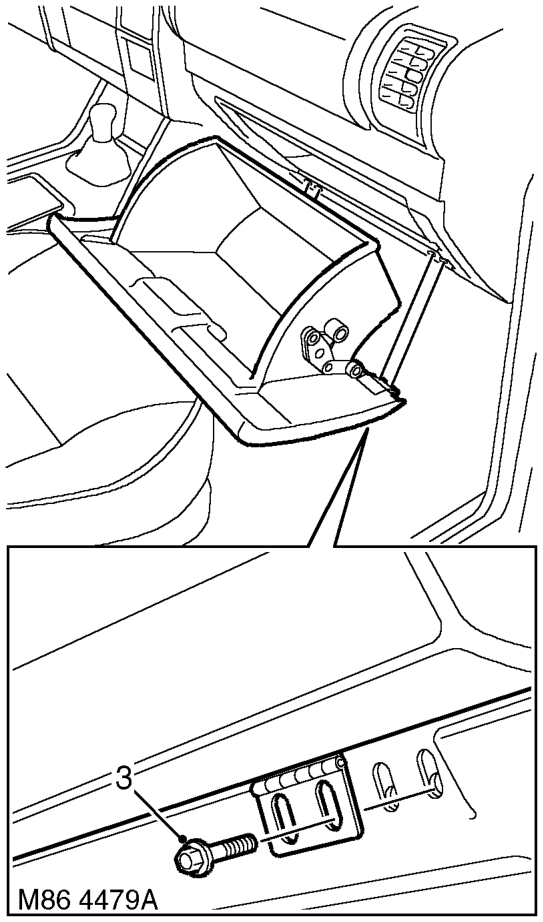

  1. Remove 4 bolts securing glove box and remove glove box.
Body control unit (bcu) – Remove 4 bolts securing glove box and remove glove box.

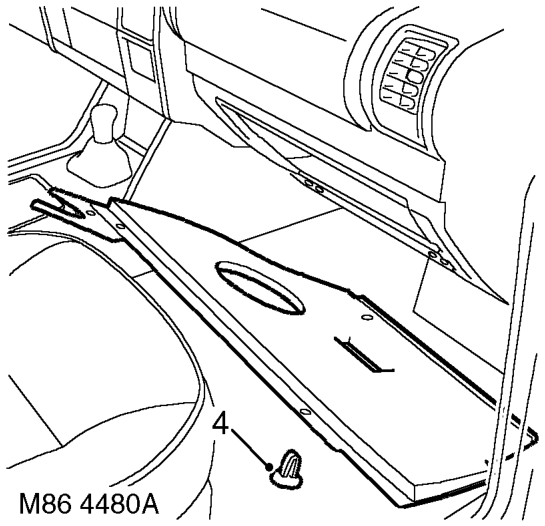

  1. Remove 4 fixings securing closing panel and remove panel.
Body control unit (bcu) – Remove 4 fixings securing closing panel and remove panel.

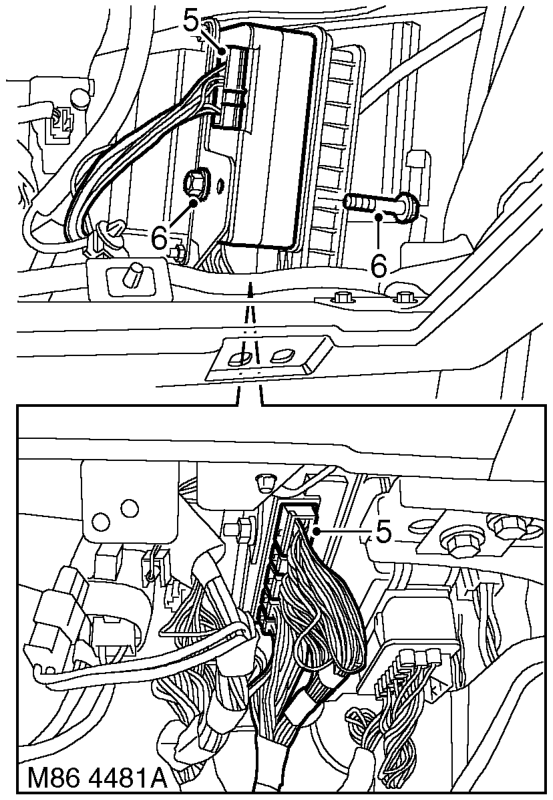

  1. Disconnect 5 multiplugs from BCU.
  2. Remove nut and bolt securing BCU to bracket and remove BCU.
