Land Rover Discovery II (UK)48 · Charging and starting
48 · Electrical

Battery Battery carrier

Make
Land Rover
Model
Discovery II (UK)
Section
Repairs › Battery Battery carrier
Charging and startingBattery Battery carrier

Battery Battery carrier

$% 86.15.01 $% 86.15.11

Remove Remove

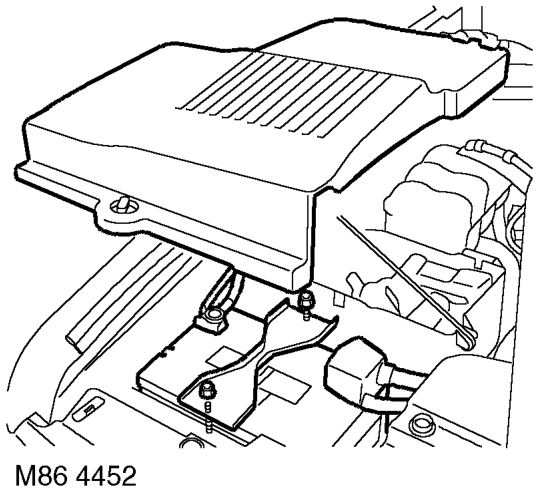

Remove remove – $% 86.15.01 $% 86.15.11
  1. Release fixings and remove battery cover.
  2. Disconnect both battery leads, negative lead first.
  3. Remove lock nuts and retaining nuts securing battery clamp.
  4. Remove battery clamp.
  5. Remove battery.

Refit

  1. Clean battery terminals and coat with petroleum jelly.
  2. Fit battery.
  3. Fit battery clamp and tighten retaining nuts and lock nuts.
  4. Fit both battery leads, negative lead last.
  5. Fit battery cover and secure fixings.
  6. Remove battery. CHARGING AND STARTING, REPAIRS, Battery.

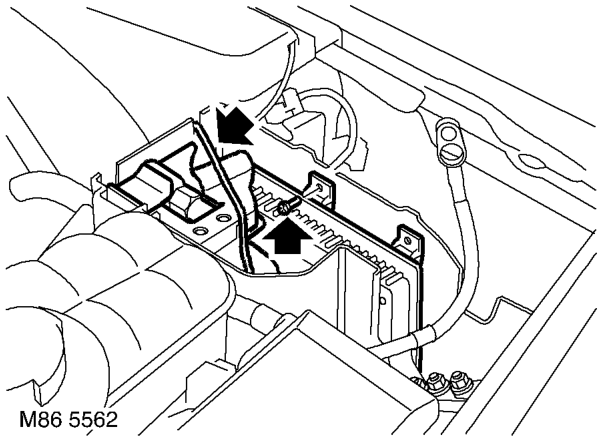

Remove remove – Remove battery.  CHARGING AND STARTING, REPAIRS, Battery.
  1. Release strap and remove jack.
  2. Release coolant hose from clip.
  3. Diesel models: Remove screw securing ECM, release ECM and position aside.

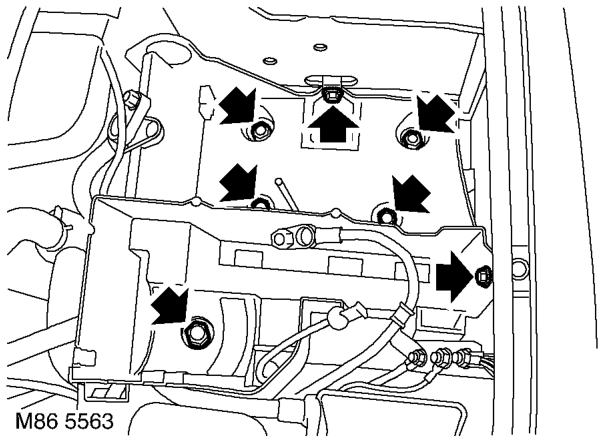

Remove remove – Diesel models: Remove screw securing ECM, release ECM and position aside.
  1. Remove 7 bolts securing battery carrier.
  2. Remove battery carrier. NOTE: Do not carry out further dismantling if component is removed for access only.
  3. Remove jack retaining strap, speed nut and clip.
