Clutch - Td5Clutch assembly

REPAIRS

Clutch assembly

$% 33.10.01

Remove

  1. Remove gearbox assembly. MANUAL GEARBOX - R380, REPAIRS, Gearbox - Diesel.
  2. Restrain flywheel.

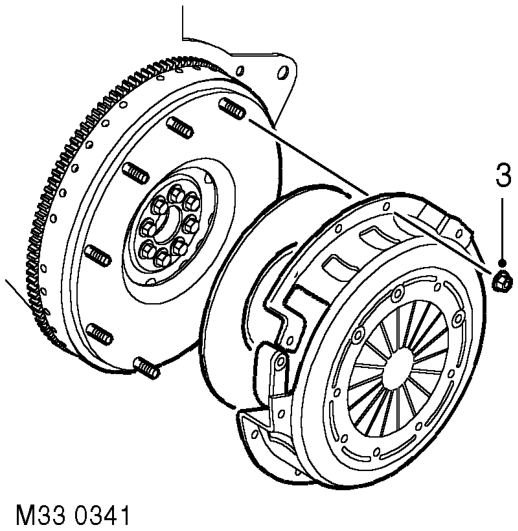

Clutch assembly – Restrain flywheel.
  1. Working in diagonal sequence, progressively loosen 6 nuts securing clutch cover to flywheel.
  2. Remove clutch cover and clutch plate.
  3. Renew all worn or damaged components.

Refit

  1. Clean clutch cover and flywheel mating faces and spigot bush in end of crankshaft.
  2. Position clutch plate to flywheel with 'gearbox side' facing towards gearbox.

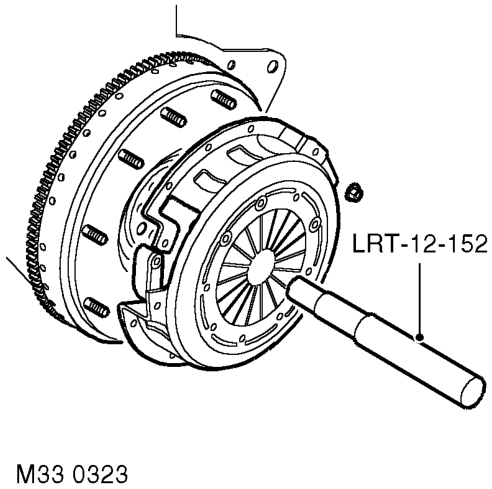

Clutch assembly – Position clutch plate to flywheel with 'gearbox side' facing towards gearbox.
  1. Position tool LRT-12-152 through drive plate into spigot bearing in crankshaft.
  2. Fit clutch cover and locate on dowels.
  3. Fit clutch cover nuts and progressively tighten in diagonal sequence to 25 Nm (18 lbf.ft).
  4. Fit gearbox assembly. MANUAL GEARBOX - R380, REPAIRS, Gearbox - Diesel.
