Repairs › ADJUSTMENTS, Drain and refill.
Cooling system - Td5ADJUSTMENTS, Drain and refill.

Refit

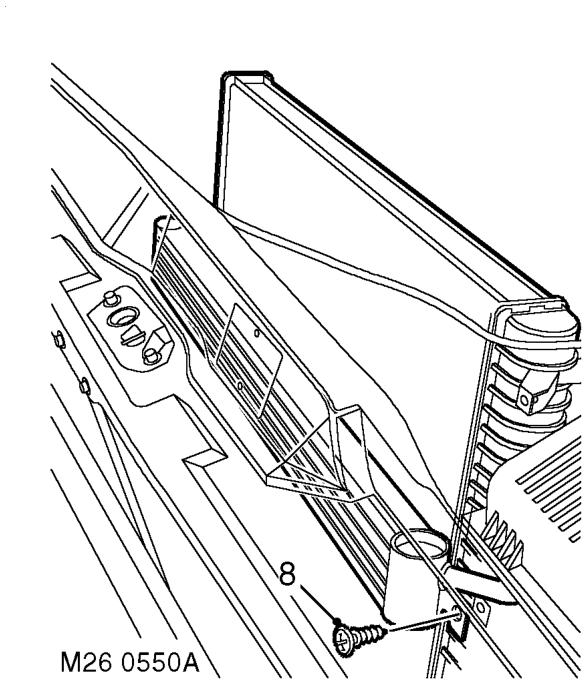

Diagram
  1. Refill cooling system.
  2. Remove securing screw and release gearbox oil cooler from radiator.
  3. Remove radiator.

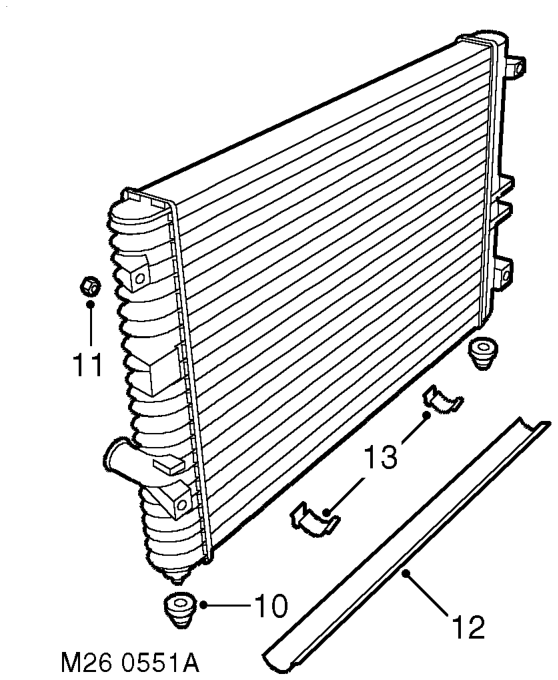

Remove radiator.
  1. Remove rubber mountings from base of radiator.
  2. Remove 2 captive nuts from radiator.
  3. Remove sealing strip from radiator.
  4. Remove cowl retaining clips from radiator.
  5. Fit cowl retaining clips to radiator.
  6. Fit sealing strip to radiator.
  7. Fit nuts and rubber mountings to new radiator.
  8. Fit radiator.
  9. Fit gearbox oil cooler to radiator and secure with screw.
  10. Connect fuel and engine oil cooler hoses to radiator and secure with clips.
  11. Connect bottom and top hoses to radiator secure with clips.
  12. Connect bleed hose to radiator and fit clip.
  13. Fit intercooler. ENGINE MANAGEMENT SYSTEM - Td5, REPAIRS, Intercooler.

COOLING SYSTEM - Td5,

ADJUSTMENTS, Drain and refill.
