Land Rover Discovery II (UK)18 · Cooling system - V8
18 · Engine

Fan - viscous (page 2 of 3)

Make
Land Rover
Model
Discovery II (UK)
Section
Repairs
Cooling system - V8Fan - viscous · page 2 of 3
Diagram
  1. Remove 2 bolts securing radiator LH and RH
  2. Remove 4 screws securing air conditioning
  3. Remove brackets with rubber mounts from

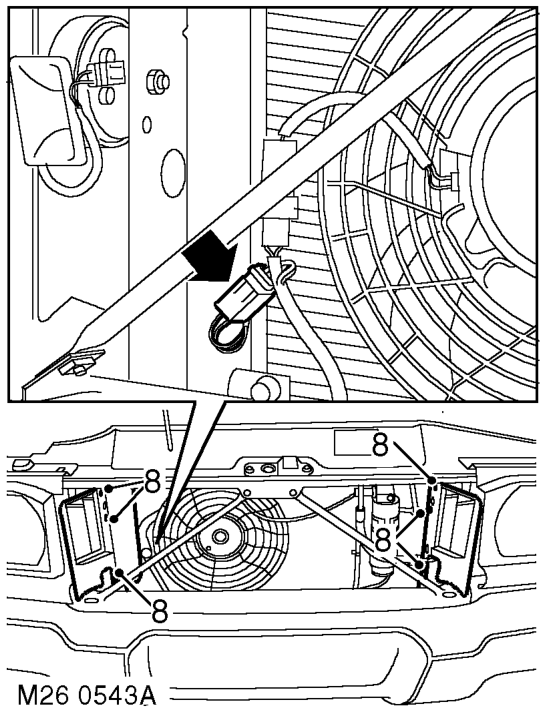

  4. Remove 6 scrivets and remove LH and RH air deflectors from front panel. Disconnect multiplug of gearbox oil temperature sensor (arrowed).
Remove 6 scrivets and remove LH and RH air deflectors from front panel. Disconnect multipl
  1. Position absorbent cloth under each cooler
  2. Push against coupling release rings and

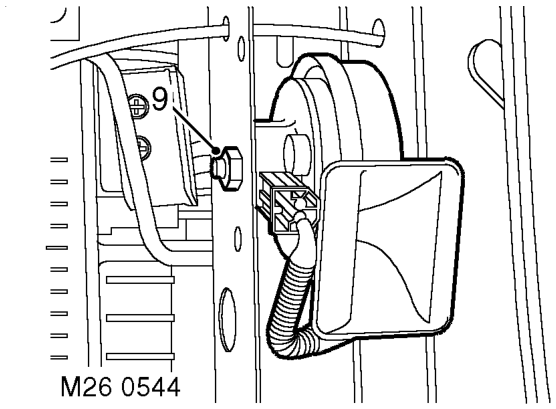

  3. Remove nut and move horn aside.

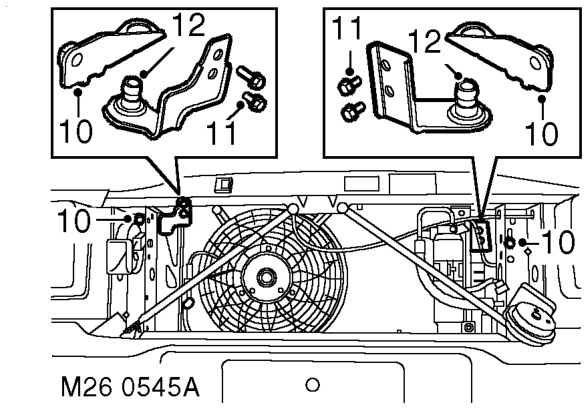

  4. If fitted:
If fitted:

upper mounting brackets to body panel and remove brackets.

condenser LH and RH upper mounting brackets to condenser.

radiator extension brackets.

radiator extension brackets.

hose to collect oil spillage.

disconnect hoses from gearbox oil cooler.

CAUTION: Always fit plugs to open connections to prevent contamination.

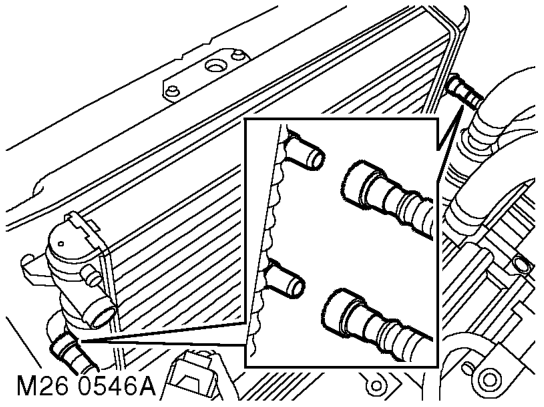

Push against coupling release rings and disconnect hoses from engine oil cooler.
