Lubrication circuit

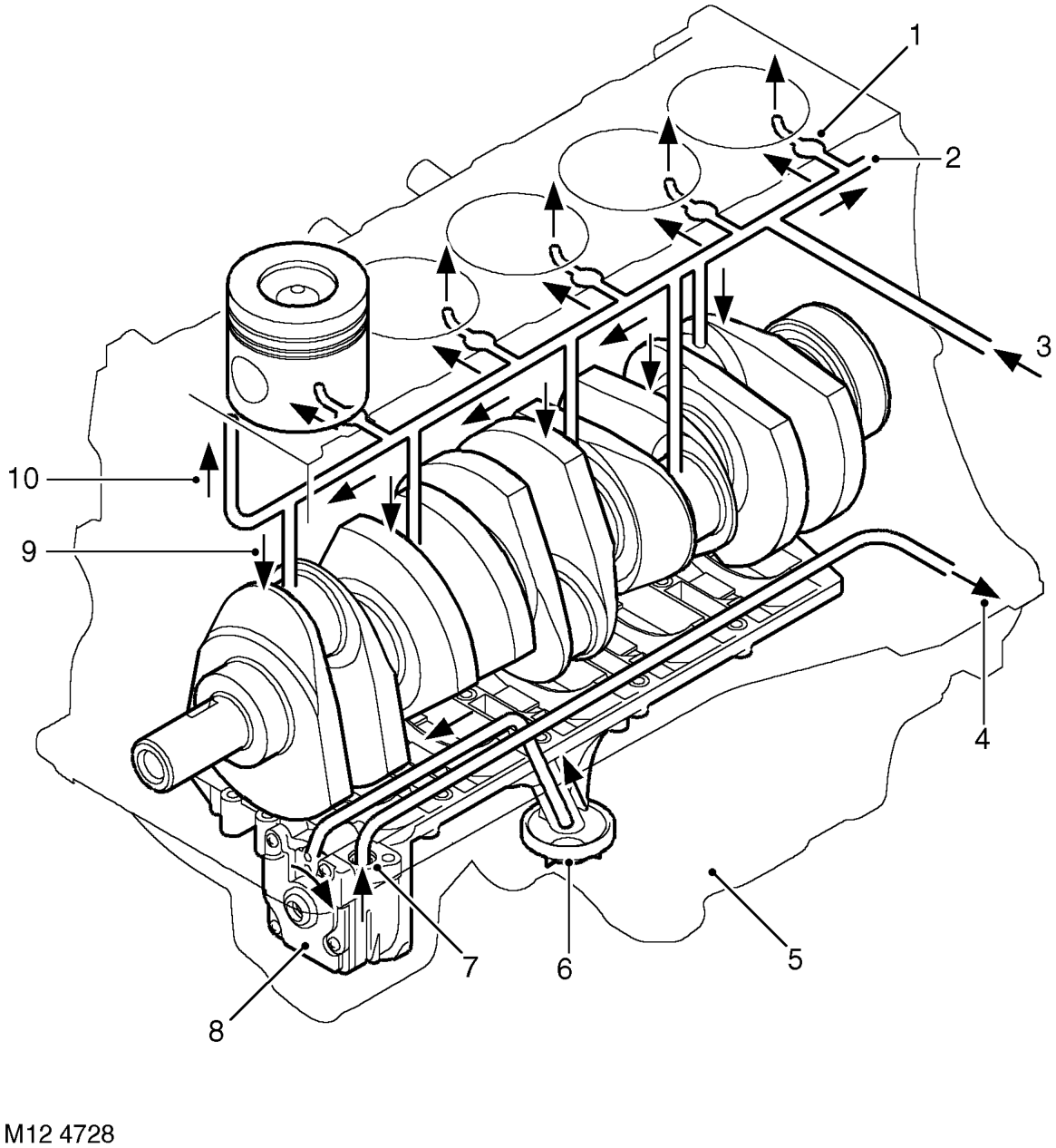

Cylinder block flow
1 Oil squirt jets (5 off) 2 Main oil delivery gallery 3 Inflow from oil cooler housing 4 Flow to oil cooler / filters (from oil pump via cylinder block) 5 Sump 6 Oil pick-up pipe 7 Flow from oil pump (relief-valve in housing) 8 Oil pump
9 Cross-drilling supply to main and crankshaft bearings 10 To cylinder head
