R380 gearbox cross section (Manual gearbox - R380)

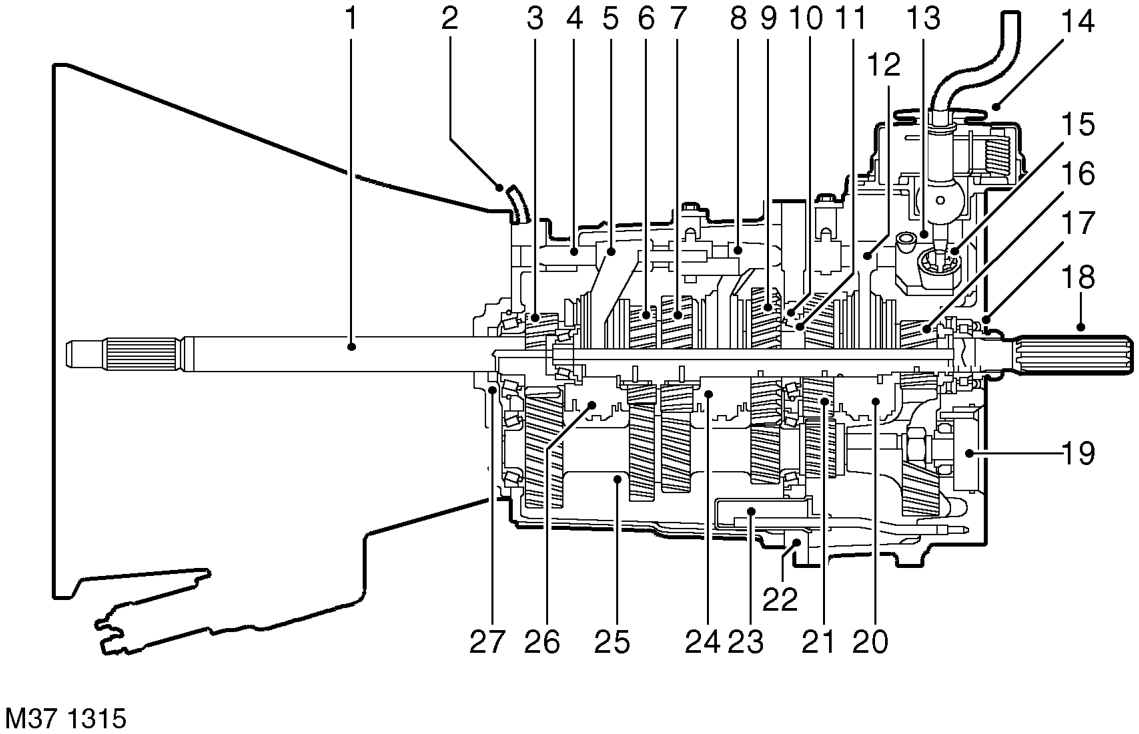

R380 gearbox cross section

1 Input shaft 2 Breather 3 Input shaft 4th gear 4 Selector shaft 5 3rd/4th selector fork 6 Output shaft 3rd gear 7 Output shaft 2nd gear 8 1st/2nd selector fork 9 Output shaft 1st gear 10 Selective shims - output shaft and layshaft endfloat 11 Selective shim - reverse gear idler shaft endfloat 12 5th/reverse selector fork 13 Selector yoke 14 Gear change assembly

15 Railko bush 16 Output shaft 5th gear 17 Output shaft oil seal 18 Output shaft 19 Oil pump 20 5th/reverse gear synchromesh assembly 21 Output shaft reverse gear 22 Centre plate 23 Oil filter 24 1st/2nd synchromesh assembly 25 Layshaft 26 3rd/4th gear synchromesh assembly 27 Input shaft oil seal
