SLS calibration blocks (Rear suspension)

_ADJUSTMENTS

SLS calibration blocks

$% 64.50.38

Fit

1. Connect TestBook to vehicle.

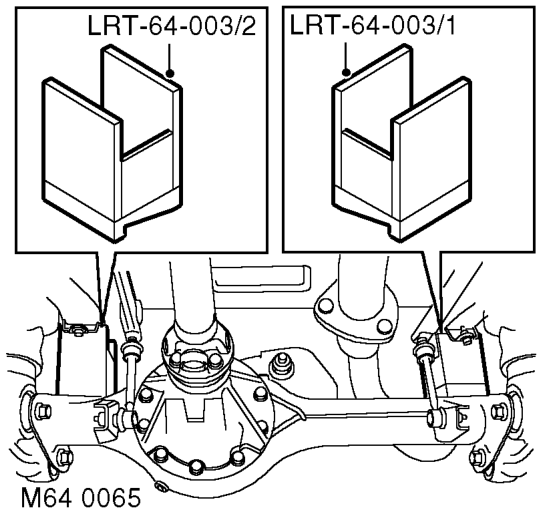

2. Ensure contact faces of calibration blocks LRT- 64-003/1 and LRT-64-003/2 are clean.

3. Using Testbook, operate the SLS system to raise the body, position the calibration blocks LRT-64-003/1 and LRT-64-003/2 between the rear axle and the body, then lower the body onto the calibration blocks. The calibration blocks are handed and only fit one way.

Remove

1. Using Testbook, operate the SLS system to raise the body, remove the calibration blocks LRT-64-003/1 and LRT-64-003/2 from between the rear axle and the body.
2. Disconnect TestBook from the vehicle.
