Cable - high/low selector (Transfer box - LT230SE)

_ADJUSTMENTS

Cable - high/low selector

$% 41.20.46

Adjust

1. Raise vehicle on ramp.

2. Using a suitable crows foot spanner, loosen lock nuts securing outer cable to abutment bracket.
3. Select high range by moving lever on transfer gearbox fully forward.

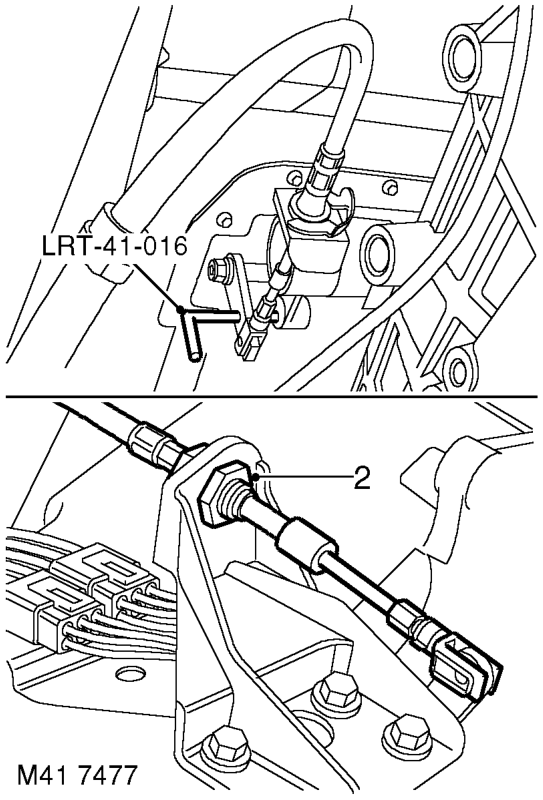

4. Insert tool LRT-41-016 through hole in selector lever and housing. This ensures selector lever is in the high range position.
5. Lightly tighten outer cable lock nuts.
6. Remove tool LRT-41-016 from gear selector lever and housing.
7. Simultaneously tighten high/low selector cable lock nuts either side of abutment bracket to 30 Nm (22 lbf.ft) .
8. Lower vehicle on ramp.
