Rear output housing components (Transfer box - LT230SE)
- Make
- Land Rover
- Model
- Discovery II (UK)
- Section
- Description and operation › Rear output housing components
Transfer box - LT230SERear output housing components

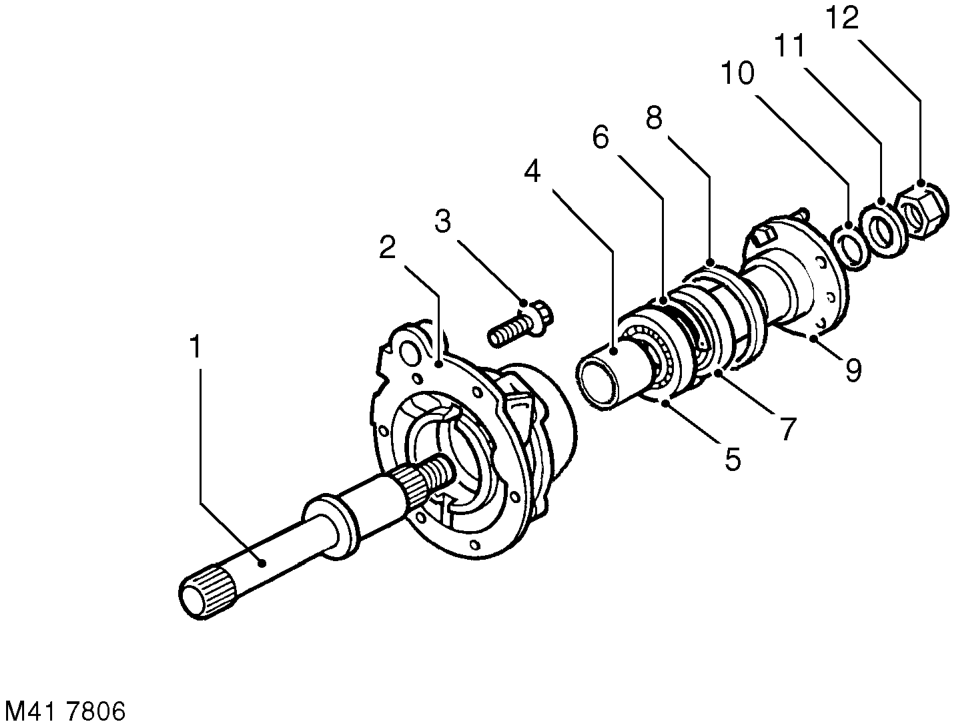

Rear output housing components
1 Rear output shaft 2 Rear output housing 3 Bolt - rear output housing 4 Spacer 5 Output shaft bearing 6 Circlip 7 Oil seal 8 Mud shield 9 Rear output flange 10 Felt washer 11 Steel washer 12 Self-locking nut
