Switch - rear door

_REPAIRS

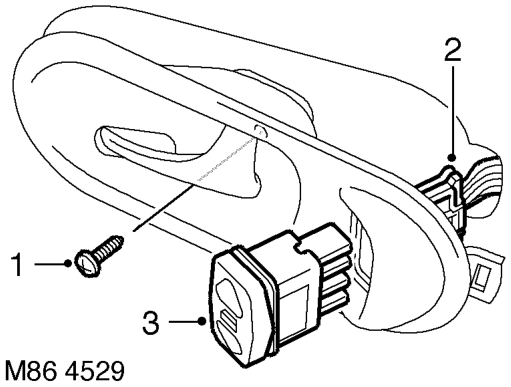

Switch - rear door

$% 86.25.10

Remove

1. Remove screw securing escutcheon to door casing.
2. Release escutcheon, far enough to access switch multiplug, and disconnect multiplug from switch.
3. Remove switch from escutcheon.

Refit

1. Connect new switch to multiplug and fit to escutcheon.
2. Fit escutcheon to door casing and secure with screw.

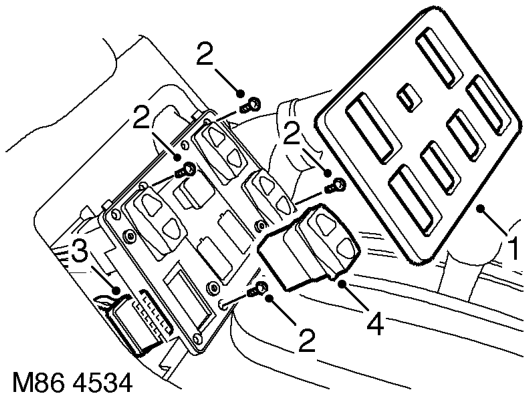

Switch - console

$% 86.25.19

Remove

1. Remove console switch cover.
2. Remove 4 screws securing switch mounting plate to console.
3. Release mounting plate from console and disconnect multiplug from switch.
4. Release and remove switch from mounting plate.

Refit

1. Fit new switch to mounting plate and connect multiplug.
2. Position mounting plate and secure with screws.
3. Fit console switch cover.
