Engine management system - MEMSECM Harness Connector Details · page 1 of 3

P Code	Component	Description
P0501	Vehicle road speed input	Signal implausable
P0505	Idle speed stepper motor (IACV)	Short circuit to battery or earth or open circuit
P0532	Air conditioning pressure sensor	Circuit fault
P0533	Air conditioning pressure sensor	Circuit fault
P0562	Battery voltage input	Circuit fault
P0563	Battery voltage input	Circuit fault
P0650	Malfunction Indicator Lamp (MIL)	Circuit fault
P1185	Upstream (pre-catalyst) oxygen heater sensor	Electrical fault
P1186	Upstream (pre-catalyst) oxygen sensor heater	Electrical fault
P1191	Downstream (post catalyst) oxygen sensor heater	Electrical fault
P1192	Downstream (post catalyst) oxygen heater sensor	Electrical fault
P1231	Fuel pump relay	Circuit fault
P1232	Fuel pump relay	Circuit fault
P1300	Main catalytic converter	Misfire causing catalyst damage
P1316	Cylinder block	Misfire causing increased emissions
P1506	Idle Air Control Valve (IACV) stepper motor drive	Circuit fault
P1507	Idle Air Control Valve (IACV) stepper motor drive	Circuit fault
P1508	Idle Air Control Valve (IACV) stepper motor drive	Circuit fault
P1537	Air conditioning drive	Circuit fault
P1538	Air conditioning drive	Circuit fault
P1590	Rough road sensor	Signal fault
P1610	Main relay drive	Circuit fault
P1611	Main relay drive	Circuit fault
P1640	CAN Bus	CAN message failure

ECM Harness Connector Details

The following tables give input/output information for the two harness connectors used on the ECM.

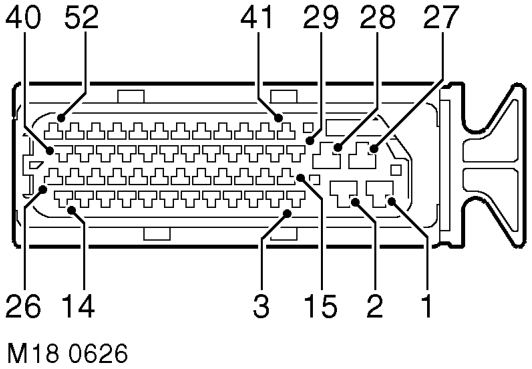

Connector C0914 (black) - 52 pin Connector C0914 is used to provide inputs and outputs from and to the ECM for engine sensor operation.

Pin No.	Description	Input/Output
1	HO2S (pre-catalyst) heater drive	Output
2	Not used	-
3	HO2S (post catalyst) positive	Output
4	CKP sensor positive	Output
