L322 Range Rover Service Procedures
DRIVESHAFTS
47-6
REPAIRS
15. Using LRT-54-027 release lower arm ball joint
and disconnect lower arm from hub.
CAUTION: Ensure ball joint seal is not
damaged. A damaged seal will lead to
premature failure of the joint.
16. Loosen bolt securing tie rod to subframe one
quarter of a turn.
17. Remove nut securing tie rod to ball joint.
18. Using LRT-54-027 release tie rod from ball joint
CAUTION: Ensure ball joint seal is not
damaged. A damaged seal will lead to
premature failure of the joint.
19. Fit centre screw LRT-60-030/3 to LRT-60-030/
1 and fit to hub with spacer LRT-60-030/2.
Secure with nuts LRT-60-030/5.

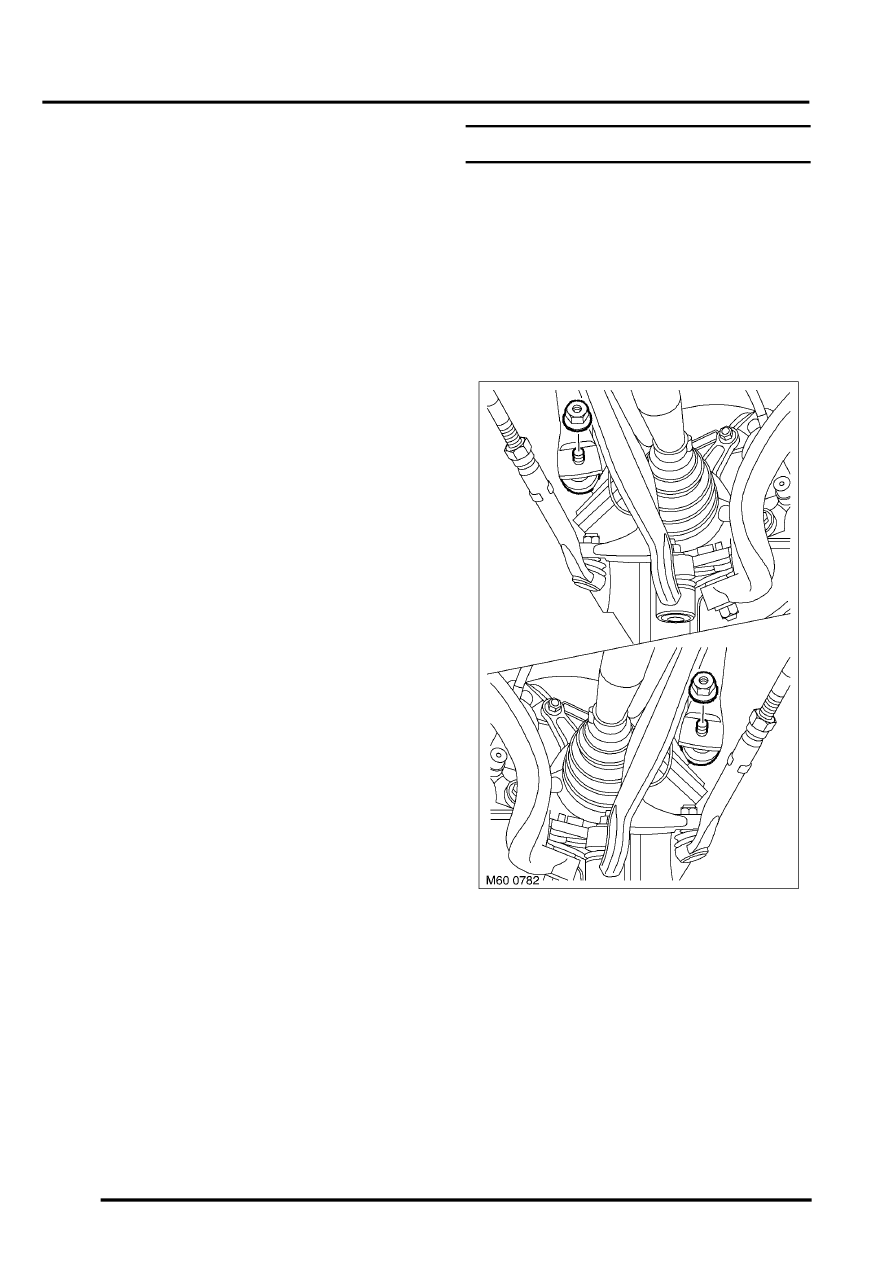

20. Tighten centre screw to press drive shaft from
flange.
21. Remove tools.
22. Position container to collect oil spillage.
M60 0789
LRT -54-027
M60 0787
LRT -54-027
