L322 Range Rover Service Procedures
ENGINE - V8
OVERHAUL 12-2-107

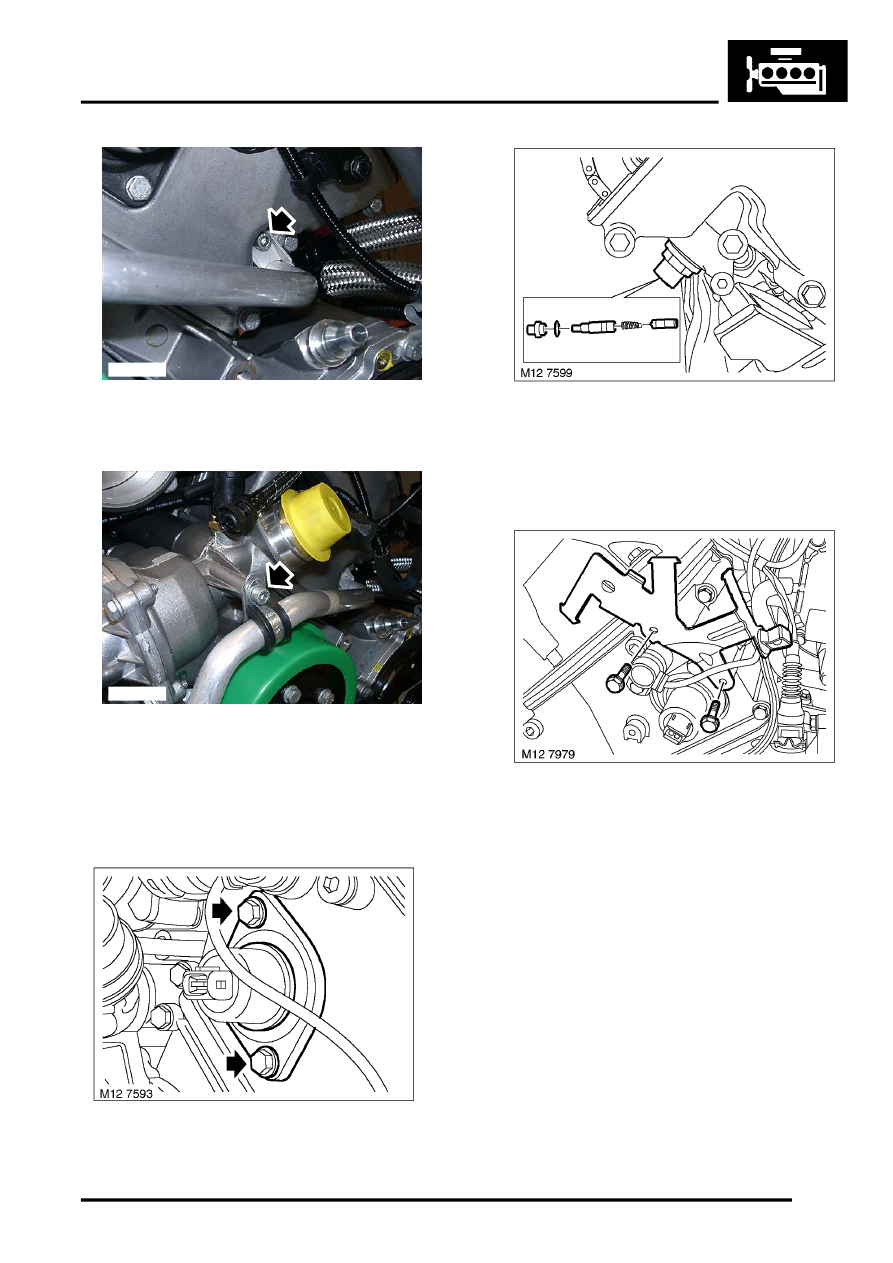

5. Remove bolt securing SAI pipe to LH cylinder
head.
6. Remove Allen bolt securing secondary air
injection SAI pipe clip to coolant pump.
7. Release SAI pipe from cylinder heads and
position aside, discard 'O' rings.
Disassembly
1. RH upper timing gear cover: Remove 2 bolts
securing VCC solenoid seal and remove seal.
2. RH upper timing gear cover: Remove chain
tensioner from timing gear cover and discard
sealing washer.
3. RH upper timing gear cover: Separate chain
tensioner body and allow oil to drain.
4. RH upper timing gear cover: Remove 2 bolts
securing engine harness bracket to RH timing
gear cover and remove bracket.
M12 7977
M12 7978
