L322 Range Rover Service Procedures
ENGINE - V8
OVERHAUL 12-2-109

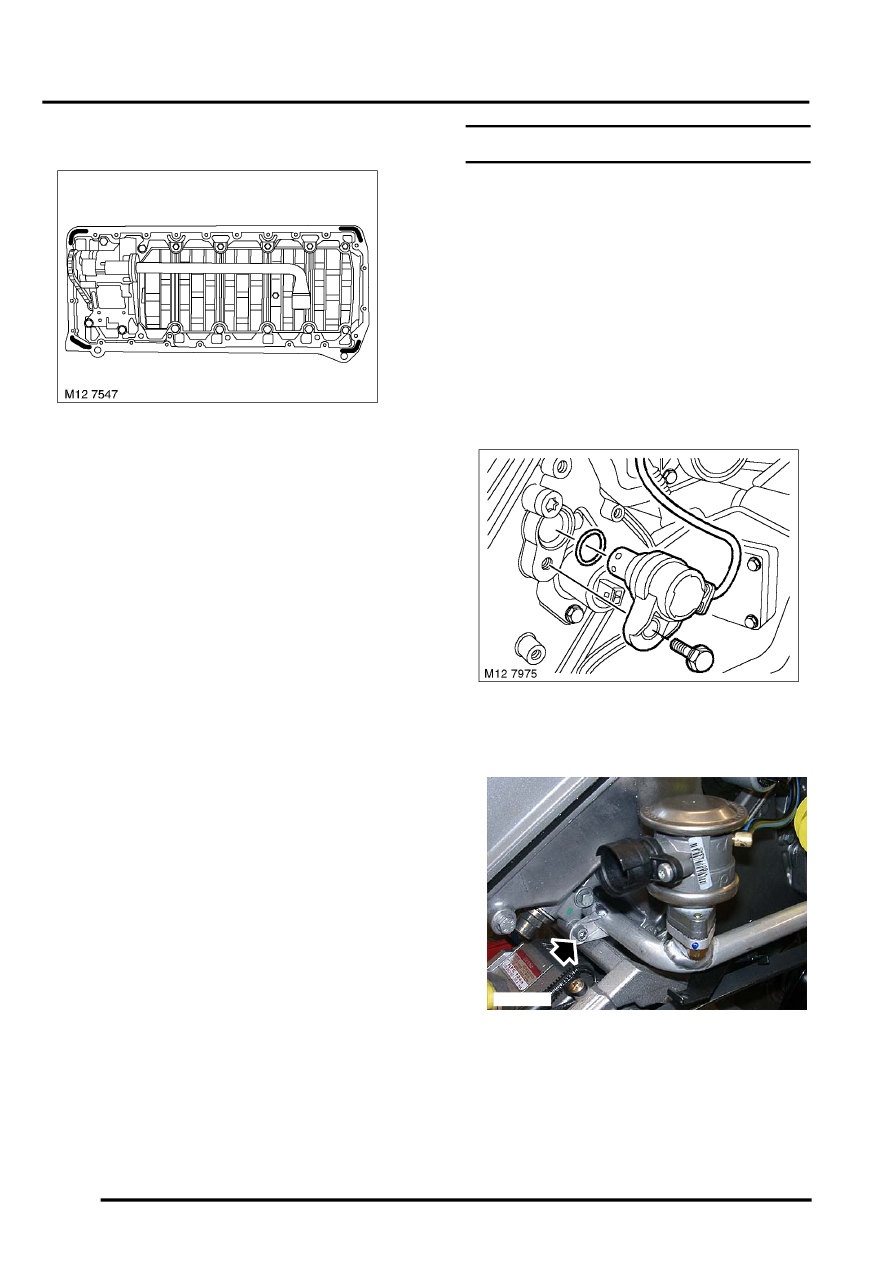

8. Fit LRT-12-225/2 to LH camshaft cover.
9. Fit camshaft cover and tool, fit 4 bolts and
tighten to 10 Nm (7 lbf.ft).
10. Tighten bolts securing timing gear cover to 15
Nm (11 lbf.ft).
11. Position 2 brackets to timing gear cover, fit bolts
and tighten.
12. Remove 4 bolts securing camshaft cover,
remove camshaft cover and LRT-12-225/2.
13. RH upper timing gear cover: Fit new sealing
washer, fit timing chain tensioner and tighten
plug securing chain tensioner to 40 Nm (30
lbf.ft).
14. RH upper timing gear cover: Clean RH VCC
solenoid seal and mating faces.
15. RH upper timing gear cover: Lubricate inner
mating face of VCC solenoid seal.
16. RH upper timing gear cover: Fit VCC
solenoid seal, fit bolts and tighten.
Refit
1. Fit 2 new 'O' rings to SAI pipe and position SAI
pipe to engine. Fit 3 bolts and tighten 3 bolts
securing SAI pipe to 10 Nm 7 (lbf.ft).
2. Fit LH VCC solenoid valve.
Engine - V8, OVERHAUL, Variable
camshaft unit - variable camshaft control
(VCC).
3. Fit LH camshaft cover.
