FRONT SUSPENSION

REPAIRS

60-21

4. Remove 4 bolts securing air reservoir, lower

reservoir and disconnect multiplug from
pressure switch.

CAUTION: Do not remove the pressure
switch from the air reservoir.

5. Remove 2 clips securing air pipes and remove

reservoir.

NOTE: Do not carry out further dismantling if
component is removed for access only.

6. Remove nuts securing valve block mounting

studs and remove studs.

Refit

1. Fit valve block mounting studs and tighten nuts.

CAUTION: Ensure the rubber blocks are
correctly seated into depressions in valve
block.

2. If fitting a new reservoir, remove air connector

from new assembly.

3. Position reservoir, secure air pipes and connect

multiplug.

CAUTION: Take care not to trap pipes under
reservoir brackets

4. Fit bolts securing air reservoir to body and

tighten to 8 Nm (6 lbf.ft).

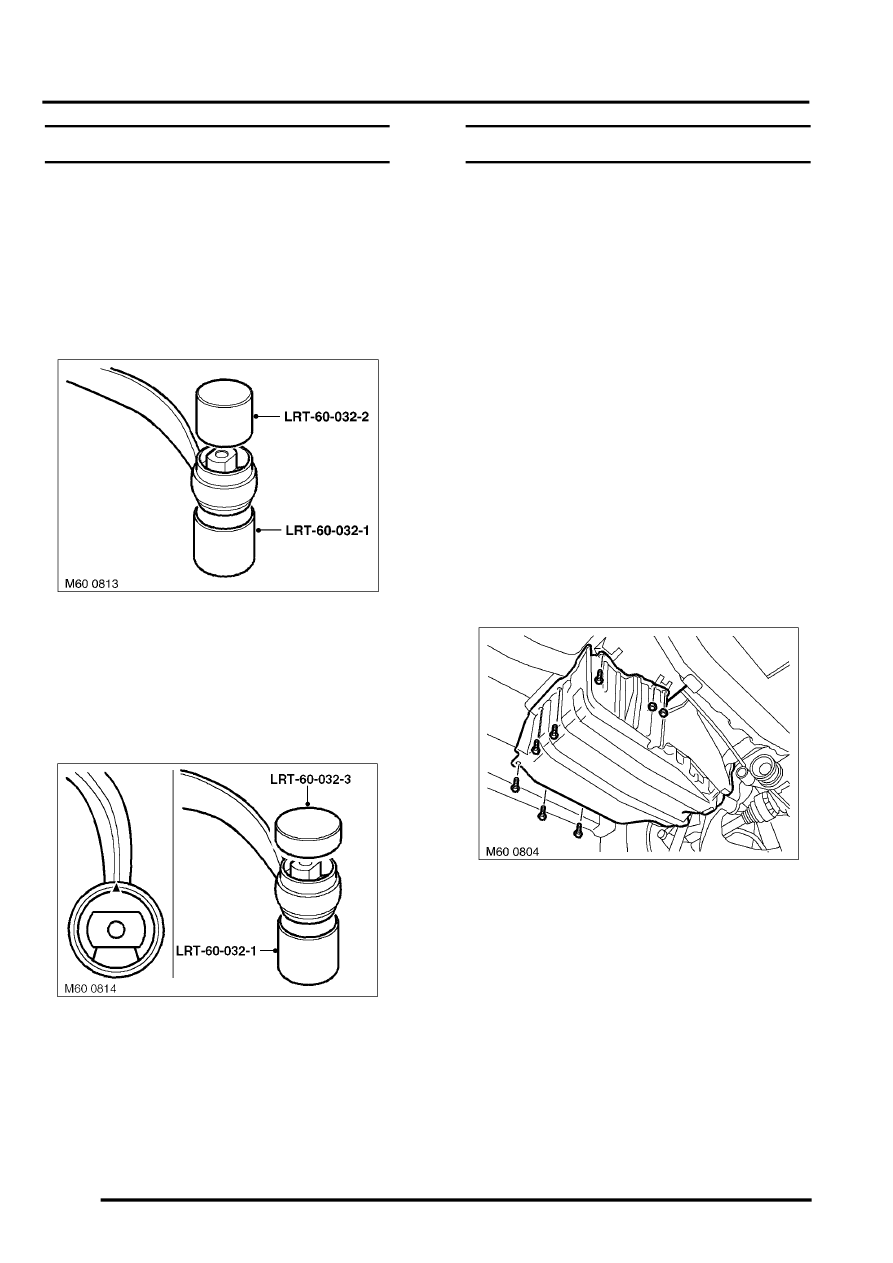

5. Fit bolts and nuts securing fuel tank shield and

tighten to 25 Nm (18 lbf.ft).

6. Fit valve block.



 +

 FRONT SUSPENSION, REPAIRS,

Valve block assembly.

7. Remove stands and lower vehicle.

M60 0807
