L322 Range Rover Service Procedures
FRONT SUSPENSION
REPAIRS
60-15
6. Fit new circlip.

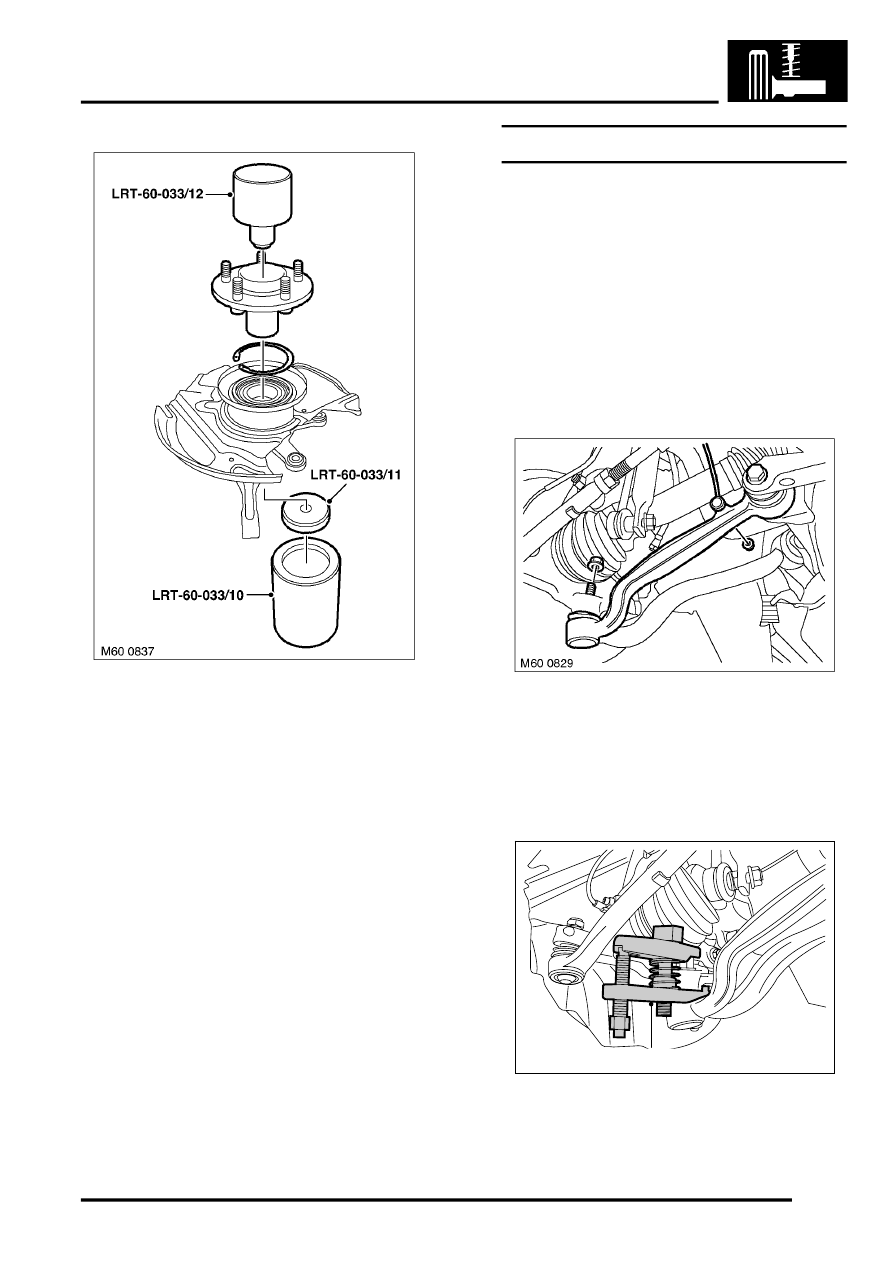

7. Fit bearing support, LRT-60-033/11 to anvil,
and press flange into bearing using adapter
LRT-60-033/12.
8. Remove tools.
9. Clean disc shield and mating face, align shield
and fit and tighten bolts.
10. Fit hub assembly.
Lower arm
$% 60.35.03
The Lower arm Ball Joints must be replaced as a
pair.
Remove
1. Raise front of vehicle.
WARNING: Do not work on or under a
vehicle supported only by a jack. Always
support the vehicle on safety stands.
2. Remove road wheel.
3. Remove nut securing height sensor link to
lower arm and release link.
4. Loosen bolt securing lower arm to subframe
one quarter of a turn.
5. Remove nut securing lower arm ball joint to
hub.
6. Using LRT-54-027 release lower arm ball joint
and disconnect lower arm from hub.
M60 0789
LRT -54-027
