Range Rover P38
BMW DIESEL
3
REPAIR

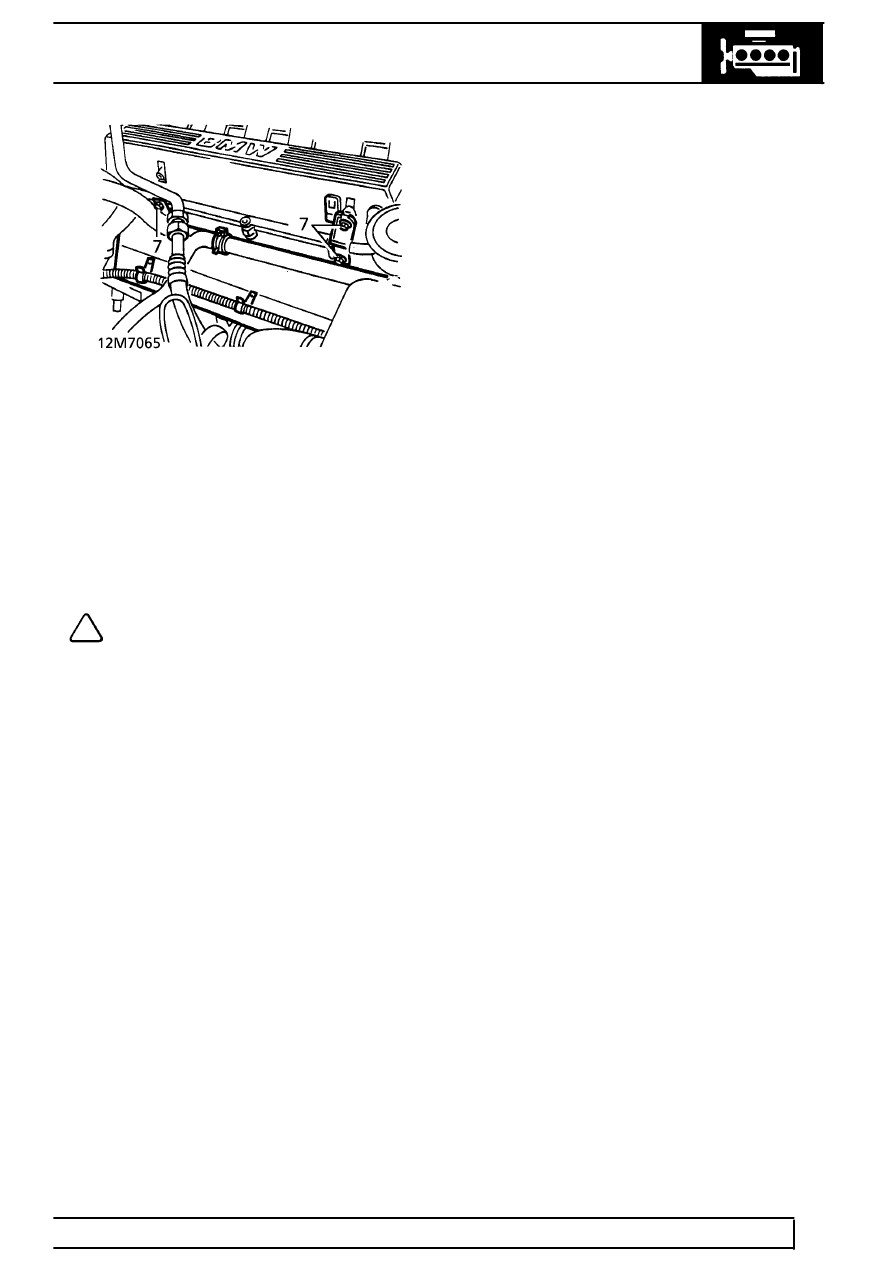

8. Remove 10 bolts securing camshaft cover to
cylinder head.
9. Remove camshaft cover. Collect gasket and
discard.
Refit
10. Ensure mating faces are clean.
11. Fit gasket to camshaft cover.
12. Position camshaft cover on cylinder head.
Ensure gasket is correctly seated.
NOTE: Protrusion on rear of gasket can
snag on bearing cap during positioning of
cover.
13. Fit camshaft cover bolts. Tighten in diagonal
sequence, working from centre outwards to
15
Nm (11 lbf.ft)
14. Align exhaust manifold heat shield. Position
intake ducting bracket.
15. Secure ducting bracket and heat shield with
bolts.
16. Position intake ducting. Engage clips.
17. Engage breather valve into ducting grommet.
18. Connect ducting to turbocharger intake hose.
Secure clip.
19. Connect intake hose to ducting. Secure clip.
20. Fit injector covers. Secure with screws.
21. Reconnect battery negative lead.
