Range Rover P38
BMW DIESEL
39
REPAIR
5. Remove lower chain guide.
6. Remove Woodruff key from crankshaft.
7. Remove 8 bolts securing oil pump to cylinder
block.
8. Remove pump. Collect gasket.
Refit
9. Ensure mating faces are clean.
10. Position new oil pump/front cover gasket to
cylinder block.
11. Refit oil pump. Fit bolts, finger tight.
12. Fit tool LRT-12-116 over crankshaft. Tighten
centre screw by hand to centralise oil pump.
13. Tighten oil pump bolts to
22 Nm (16 lbf.ft)
14. Remove tool from crankshaft.
15. Fit woodruff key to crankshaft.
16. Fit lower chain guide.

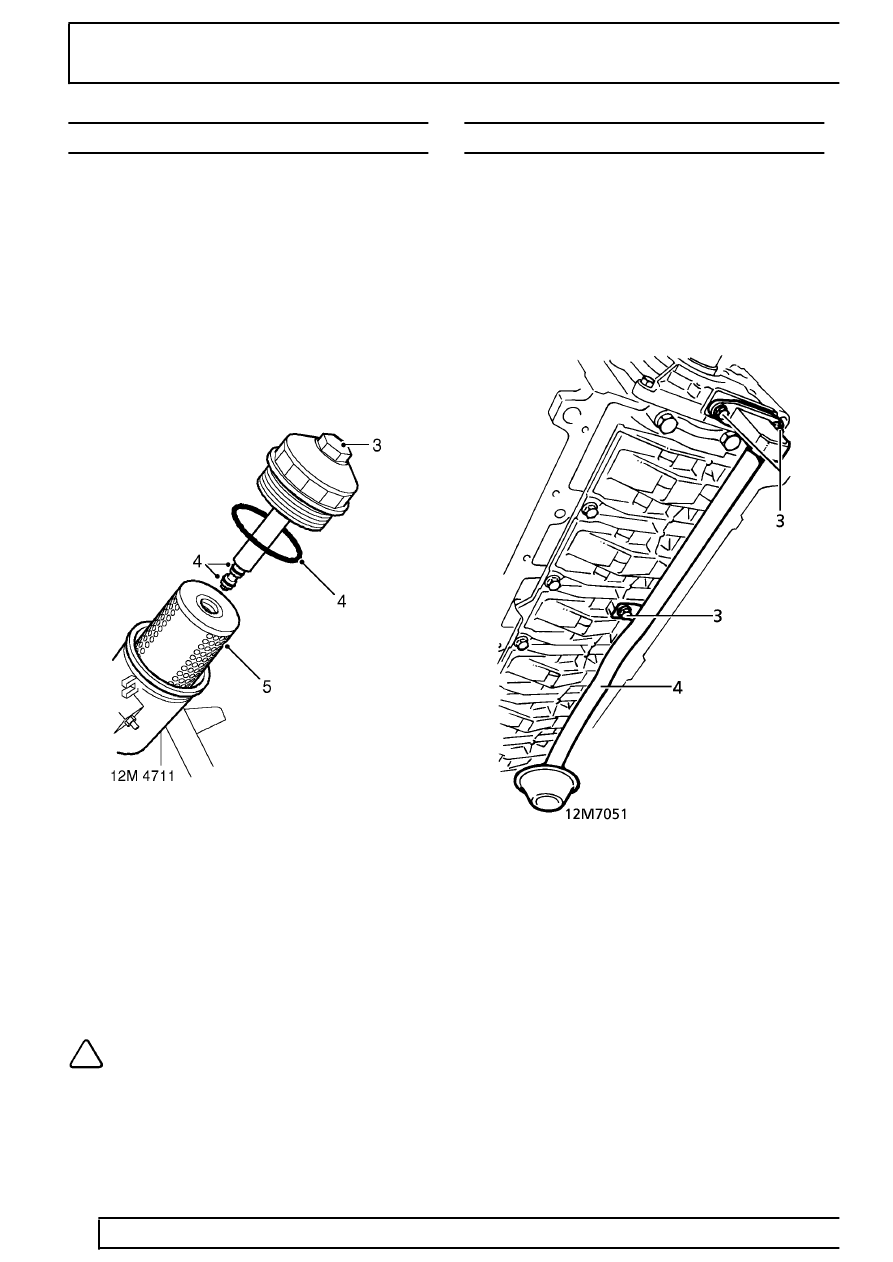

17. Using a new gasket, position oil pick-up strainer.
Secure with bolts. Tighten to
10 Nm (7 lbf.ft)
18. Fit timing chains and sprockets.
See this
section.
19. Reconnect battery negative lead.
