AIR CLEANER ASSEMBLY - from 97MY
Service repair no - 19.10.01

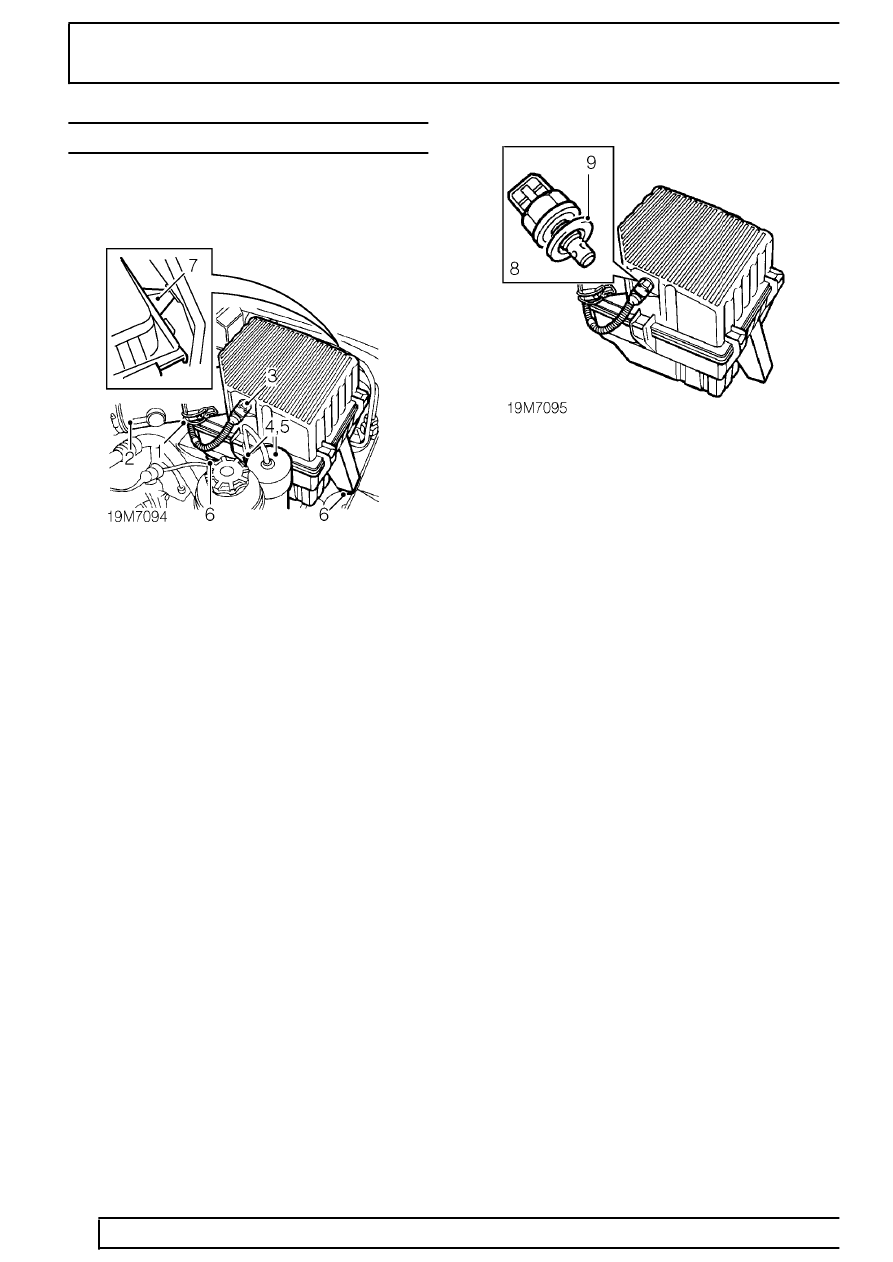

Remove
1. Release 2 clips securing mass air flow (MAF)
meter to air cleaner.
2. Release MAF meter from air cleaner. Remove
and discard ’O’ ring from MAF sensor.
3. Disconnect multiplug from air temperature
sensor.
4. Remove bolt securing air suspension air dryer to
air cleaner.
5. Release air dryer from air cleaner and position
aside.
6. Release air cleaner from 2 valance grommets.
7. Remove air cleaner from inner wing grommet.
Do not carry out further dismantling if
component is removed for access only.
8. Remove air temperature sensor from air cleaner.
9. Remove and discard air temperature sensor
seal.
10. Fit new seal to air cleaner.
11. Fit air temperature sensor to air cleaner and
tighten to
8 Nm (6 lbf.ft)
Refit
12. Fit air cleaner lugs to inner wing and valance
grommets. Ensure lugs are fully engaged to
grommets.
13. Position air dryer to air cleaner, fit bolt and
tighten to
8 Nm (6 lbf.ft)
14. Connect multiplug to air temperature sensor.
15. Fit new ’O’ ring seal to MAF meter.
16. Engage MAF meter to air cleaner and secure
with clips.
