IGNITION COILS - up to 99MY
Service repair no - 18.20.45 - Set
Service repair no - 18.20.43 - Each
Service repair no - 18.20.44 - Extra - Each

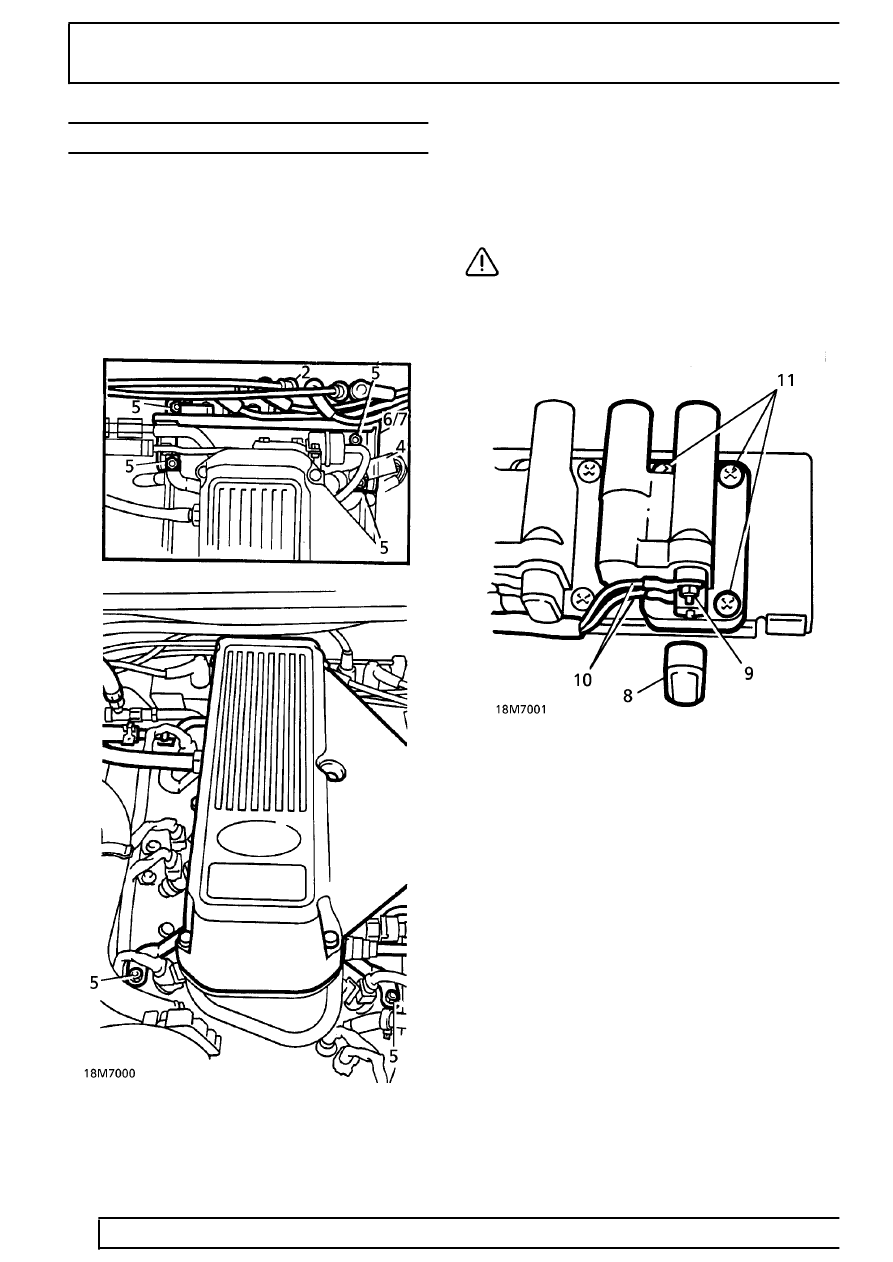

Remove
1. Disconnect battery negative lead.
2. Disconnect H.T. leads from ignition coils. Note
positions of leads.
3. Place H.T. leads aside.
4. Disconnect ignition coil multiplug.
5. Remove 6 nuts securing fuel rail and ignition coil
bracket to inlet manifold.
6. Lift fuel rail slightly for access. Release ignition
coil bracket from inlet manifold studs.
CAUTION: Do not completely withdraw
injectors from fitted locations.
7. Remove ignition coils assembly.
8. Remove terminal cover.
9. Remove 2 nuts securing wires to coil terminals.
10. Remove wires from terminals. Note wire
positions.
11. Remove 3 screws securing ignition coil to
bracket. Remove coil.
