FAN - ECM COOLING - from 99MY
Service repair no - 18.30.80

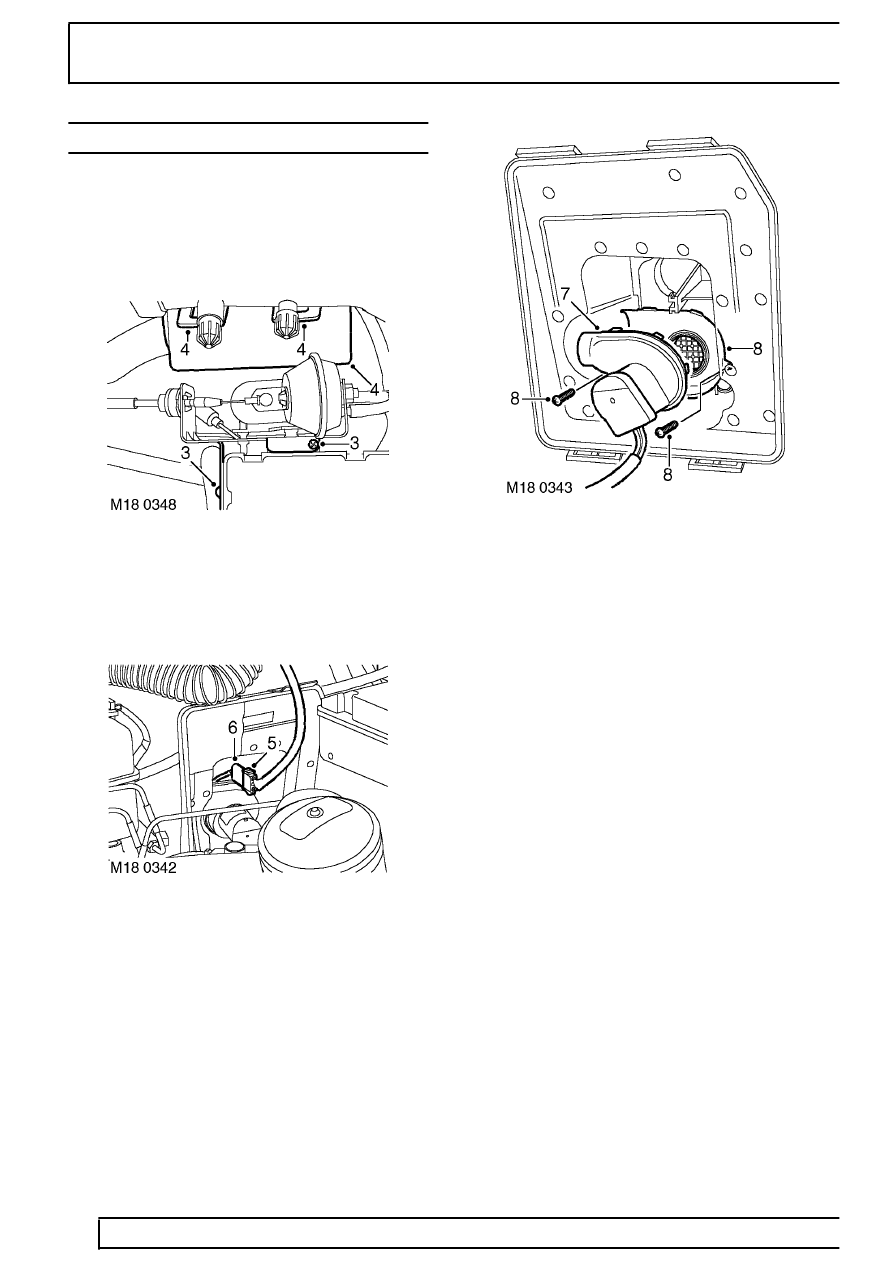

Remove
1. Release fixings and remove battery cover.
2. Disconnect battery earth lead.
3. Remove 2 screws securing cruise control
assembly to EAS housing cover and position
aside.
4. Release 2 fixings securing ECM housing cover
and release cover.
5. Disconnect ECM cooling fan multiplug and
position ECM housing cover aside.
6. Release ECM cooling fan multiplug from bracket.
7. Release ECM cooling fan from cooling fan cowl
and remove cooling fan.
8. Remove 2 screws securing cooling fan cowl to
ECM housing and remove cowl.
Refit
9. Remove cooling fan cowl from new cooling fan.
10. Fit cooling fan cowl to ECM housing and secure
with screws.
11. Fit cooling fan to cooling fan cowl and fit
multiplug to bracket.
12. Position ECM housing cover and connect ECM
cooling fan multiplug.
13. Fit ECM housing cover to main housing and
secure with fixings.
14. Position cruise control assembly to EAS housing
cover and secure with screws.
15. Connect battery earth lead.
16. Fit battery cover and secure with fixings.
