Ground distribution – circuit diagram

Make

Land Rover

Model

Range Rover Classic Electrical Troubleshooting Manual

Year

1995

Section

Circuit diagram › Ground distribution – circuit diagram

Ground distributionGround distribution – circuit diagram

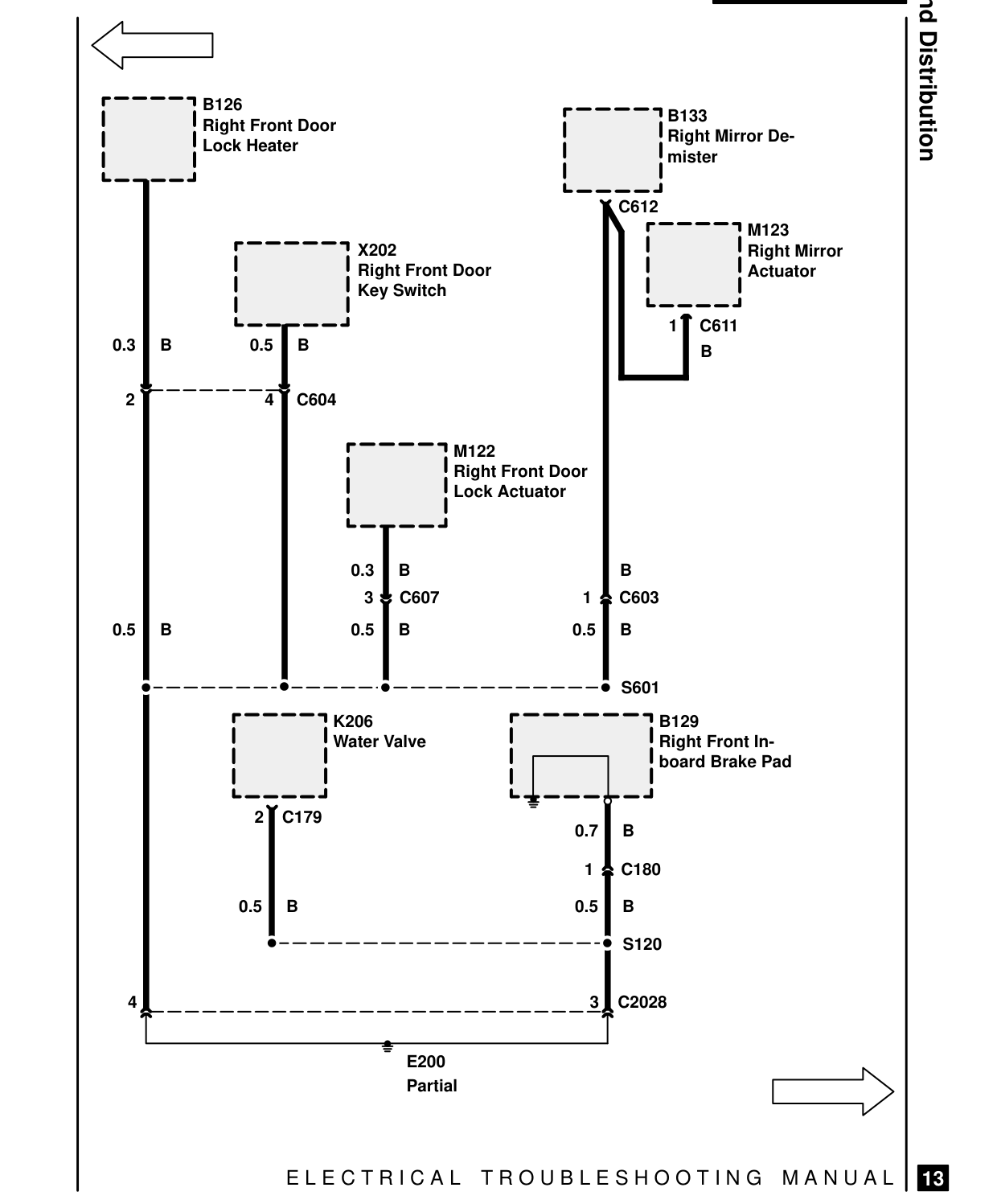

GROUND DISTRIBUTION – CIRCUIT DIAGRAM

B126 Right Front Door Lock Heater

X202 Right Front Door Key Switch

0.3 B 0.5 B

2 4 C604

M122 Right Front Door Lock Actuator

0.3 B 3 C607 0.5 B 0.5 B

K206 Water Valve

2 C179

0.5 B

4

E200 Partial

E L E C T R I C A L

Ground Distribution B133 Right Mirror De- mister

C612 M123 Right Mirror Actuator

1 C611 B

B 1 C603 0.5 B

S601

B129 Right Front In- board Brake Pad

0.7 B

1 C180

0.5 B

S120

3 C2028

T R O U B L E S H O O T I N G M A N U A L

13

48 General
