Ground distribution – circuit diagram

Make

Land Rover

Model

Range Rover Classic Electrical Troubleshooting Manual

Year

1995

Section

Circuit diagram › Ground distribution – circuit diagram

Ground distributionGround distribution – circuit diagram

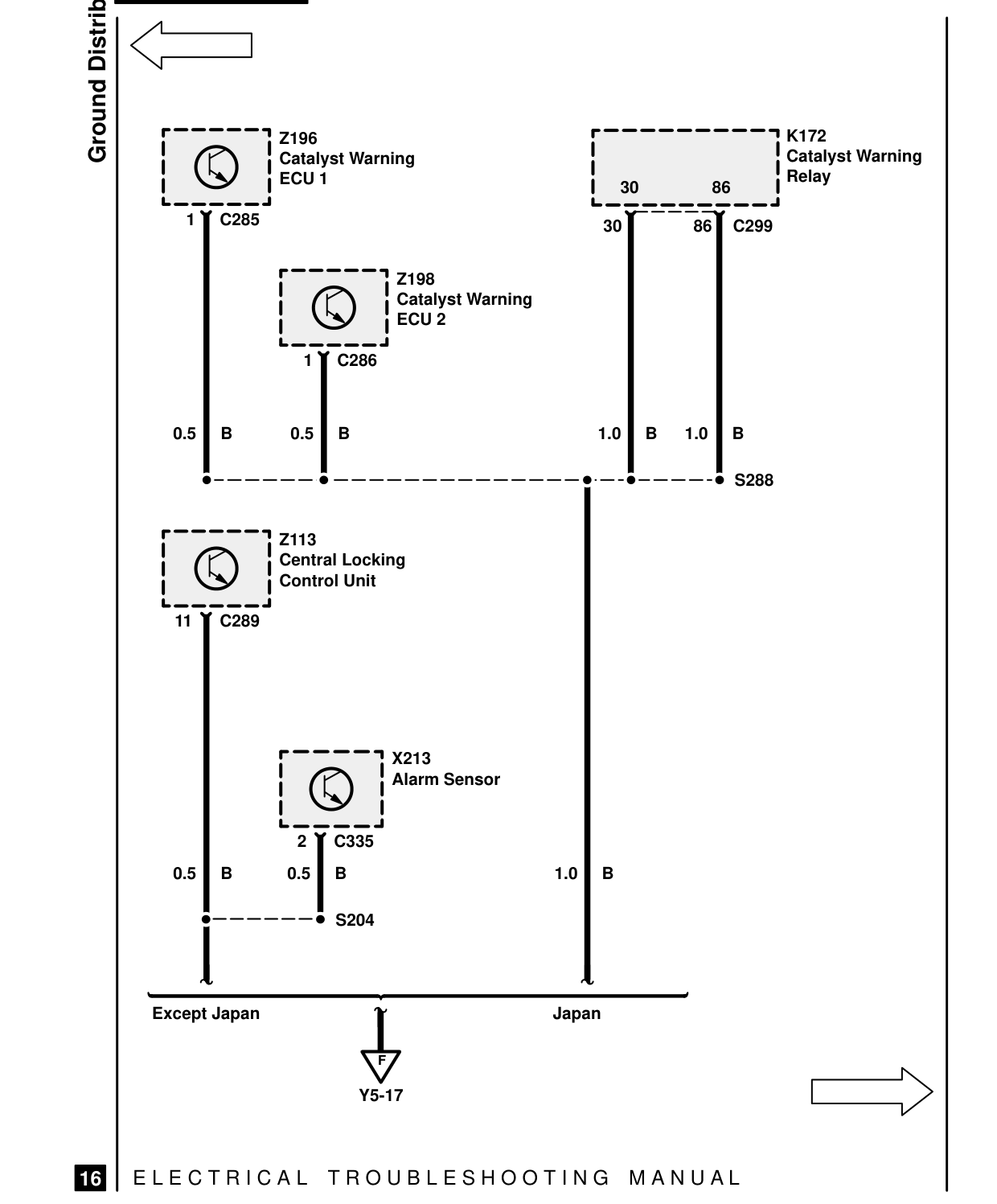

GROUND DISTRIBUTION – CIRCUIT DIAGRAM

Ground Distribution Z196 Catalyst Warning ECU 1

1 C285

Z198 Catalyst Warning ECU 2

1 C286

0.5 B 0.5 B

Z113 Central Locking Control Unit

11 C289

X213 Alarm Sensor

2 C335 0.5 B 0.5 B

S204

Except Japan

F

Y5-17

E L E C T R I C A L T R O U B L E S H O O T I N G

16

K172 Catalyst Warning Relay 30 86

30 86 C299

1.0 B 1.0 B

S288

1.0 B

Japan

M A N U A L

48 General
