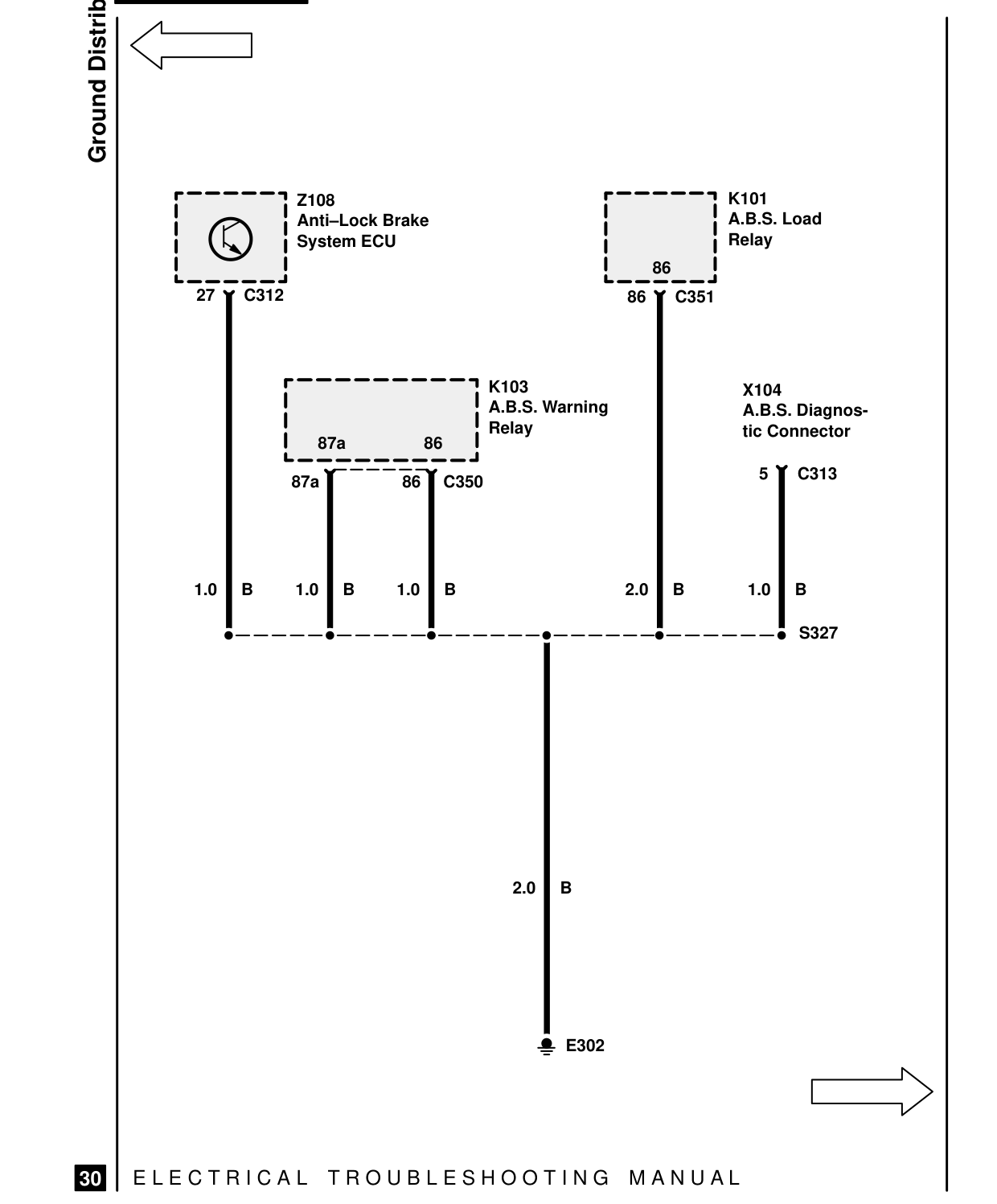

GROUND DISTRIBUTION – CIRCUIT DIAGRAM

Ground Distribution

Z108 Anti-Lock Brake System ECU

27 C312

87a 86

87a 86

1.0 B 1.0 B 1.0

E L E C T R I C A L T R O U B L E S H O O T I N G

30

K101 A.B.S. Load Relay 86 86 C351

K103 X104 A.B.S. Warning A.B.S. Diagnos- Relay tic Connector

5 C313 C350

B 2.0 B 1.0 B

S327

2.0 B

E302

M A N U A L

48 General
