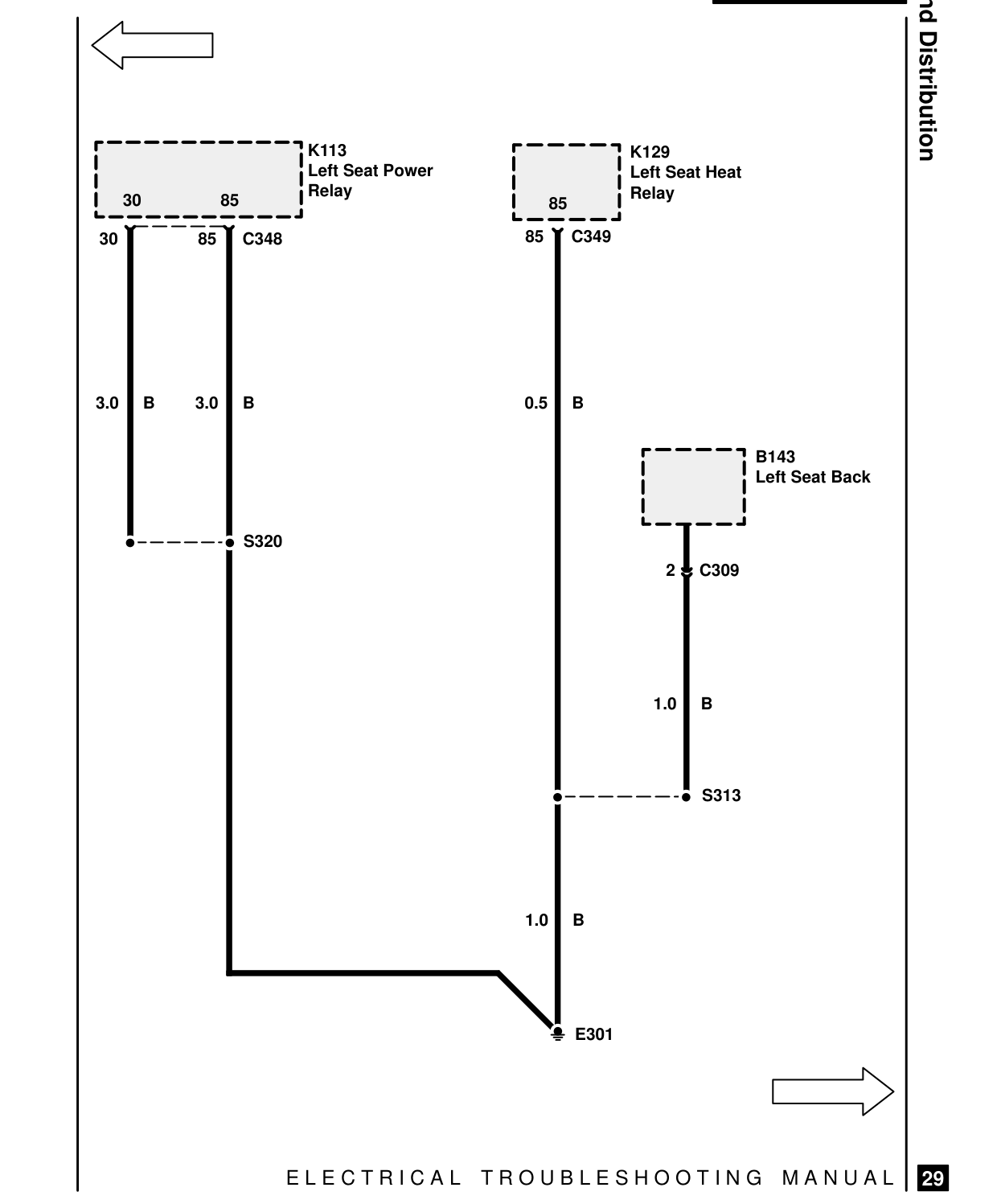

GROUND DISTRIBUTION – CIRCUIT DIAGRAM

K113 Left Seat Power Relay 30 85

30 85 C348

3.0 B 3.0 B

S320

E L E C T R I C A L

Ground Distribution K129 Left Seat Heat Relay 85

85 C349

0.5 B

B143 Left Seat Back

2 C309

1.0 B

S313

1.0 B

E301

T R O U B L E S H O O T I N G M A N U A L

29
