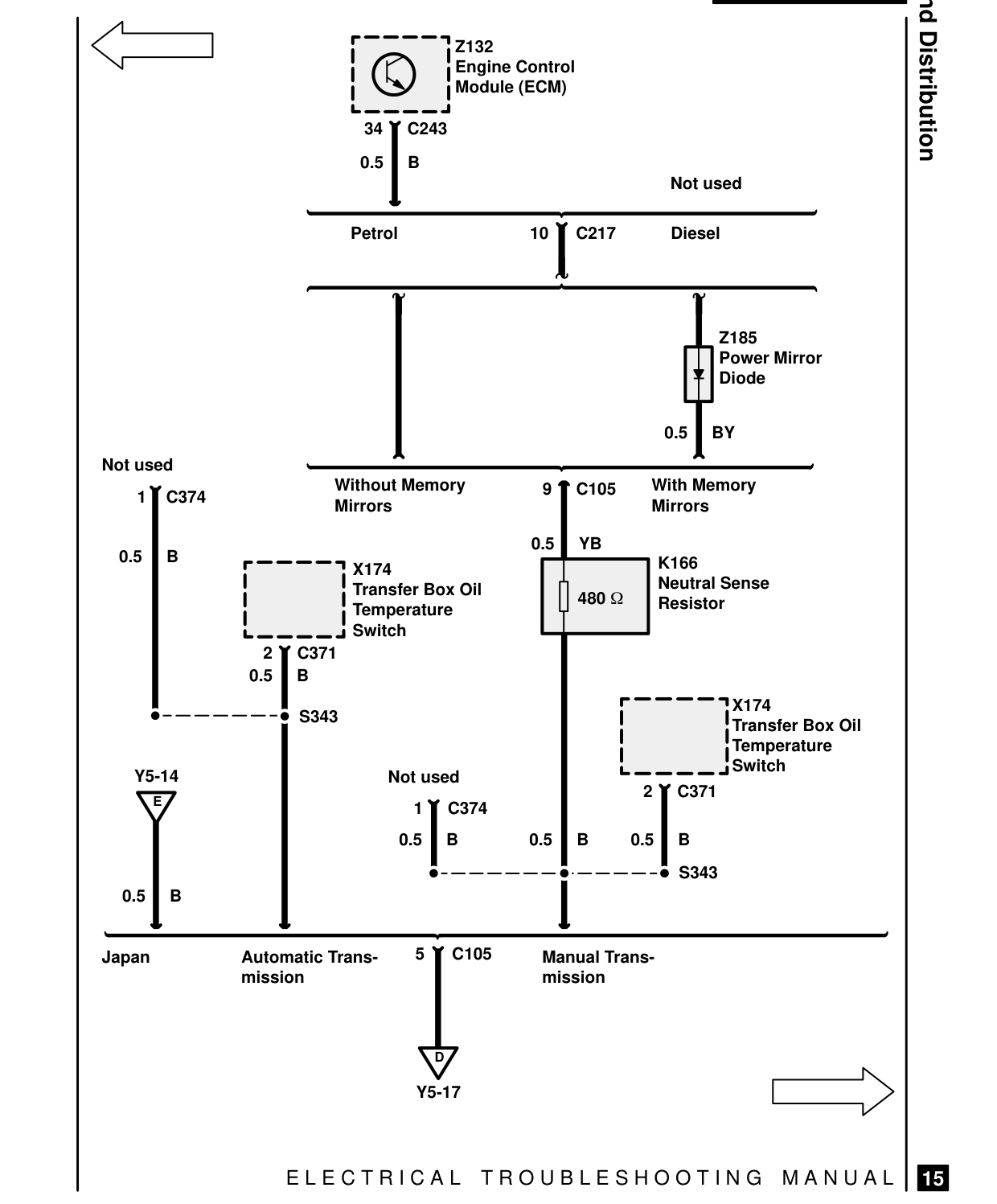

Ground distribution – circuit diagram

GROUND DISTRIBUTION – CIRCUIT DIAGRAM

Z132 Engine Control Module (ECM)

34 C243

0.5 B

Petrol

Not used Without Memory 1 C374 Mirrors

0.5 B X174 Transfer Box Oil Temperature Switch 2 C371 0.5 B

S343

Y5-14 Not used E 1 C374 0.5 B

0.5 B

5 C105 Japan Automatic Trans- mission

D

Y5-17

E L E C T R I C A L

Ground Distribution Not used

Diesel 10 C217

Z185 Power Mirror Diode

0.5 BY

With Memory 9 C105 Mirrors

0.5 YB K166 Neutral Sense

480

Resistor

X174 Transfer Box Oil Temperature Switch 2 C371

0.5 B 0.5 B S343

Manual Trans- mission

T R O U B L E S H O O T I N G M A N U A L

15
