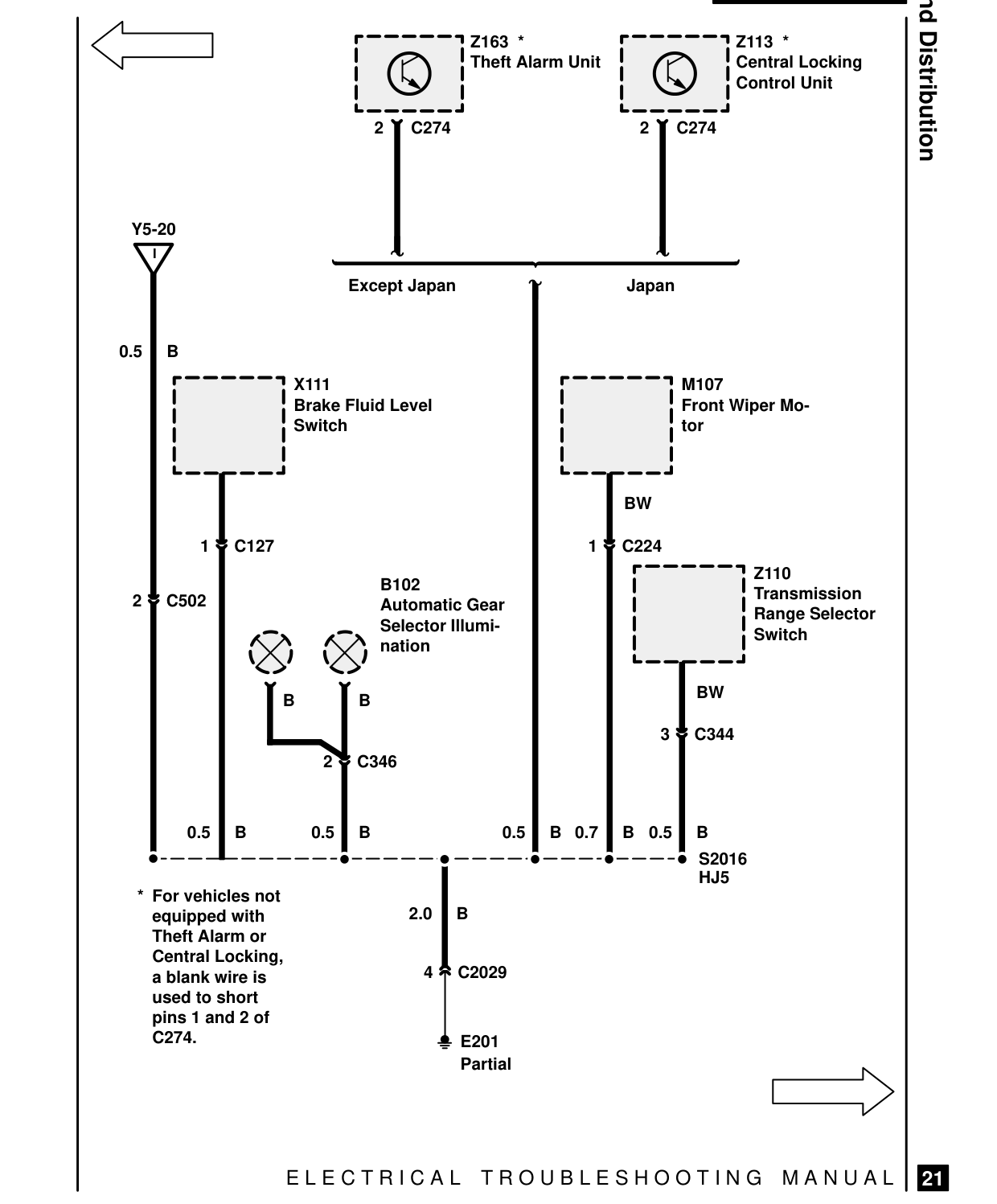

Ground distribution – circuit diagram

GROUND DISTRIBUTION – CIRCUIT DIAGRAM

Z163 * Theft Alarm Unit

2 C274

Y5-20 I

Except Japan

0.5 B

X111 Brake Fluid Level Switch

1 C127

B102 2 C502 Automatic Gear Selector Illumi- nation

B B

2 C346

0.5 B 0.5 B

* For vehicles not 2.0 B equipped with Theft Alarm or Central Locking, 4 C2029 a blank wire is used to short pins 1 and 2 of C274. E201 Partial

E L E C T R I C A L

Ground Distribution Z113 * Central Locking Control Unit

2 C274

Japan

M107 Front Wiper Mo- tor

BW

1 C224 Z110 Transmission Range Selector Switch

BW

3 C344

0.5 B 0.7 B 0.5 B S2016 HJ5

T R O U B L E S H O O T I N G M A N U A L

21
