ElectricalAuto changer - kenwood audio systems

Refit

  1. Position subwoofer assembly and connect multiplug.
  2. Fit and tighten 4 bolts securing subwoofer to body.
  3. Align finisher to fixings and secure into position.
  4. Position press studs and secure with screws.
  5. Return seats to original position.

AUTO CHANGER - KENWOOD AUDIO SYSTEMS

Service repair no - 86.50.60

Remove

Auto changer - kenwood audio systems – Service repair no - 86.50.60

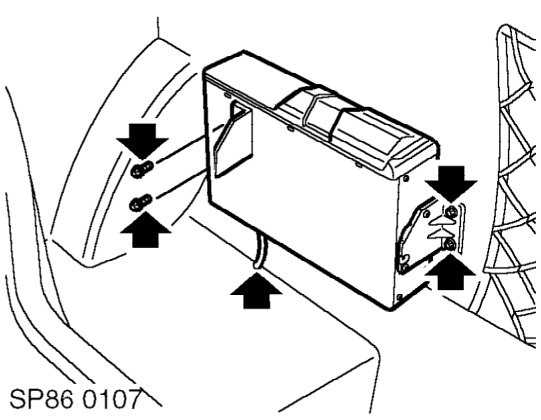

  1. Release multiplug from auto changer. Remove 4 bolts securing auto changer to vehicle and remove autochanger.
Auto changer - kenwood audio systems – Release multiplug from auto changer. Remove 4 bolts securing auto changer to vehicle and r

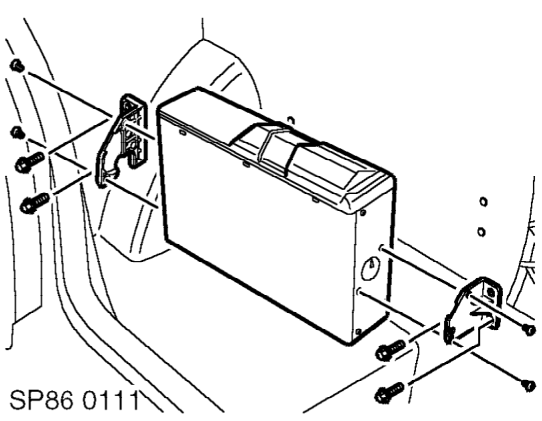

  1. Remove 4 screws securing support brackets to auto changer and remove brackets.
