ElectricalFront speaker

FRONT SPEAKER

Service repair no - 86.50.15

Remove

  1. Remove front door trim casing. See BODY, Doors.

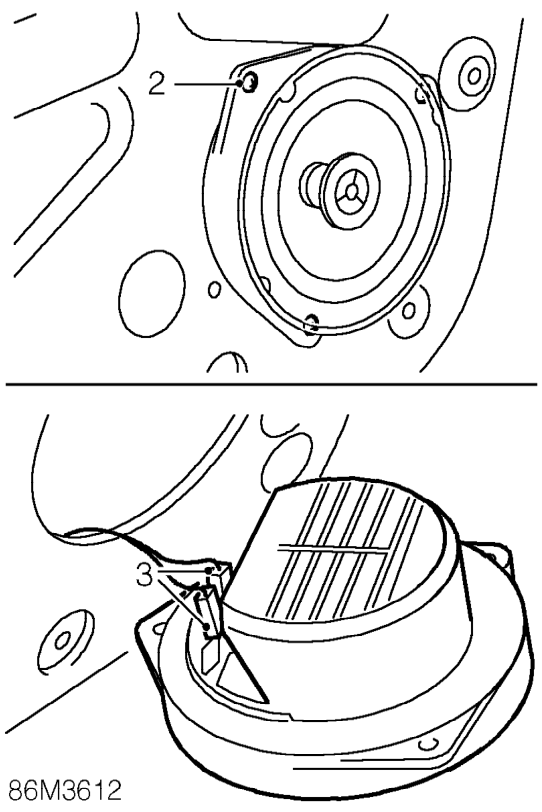

Front speaker – Remove front door trim casing. See BODY, Doors.
  1. Remove 3 screws securing speaker to door.
  2. Release speaker from door, disconnect 2 Lucars.
  3. Remove speaker.

Refit

  1. Position speaker to door and connect Lucars.
  2. Align speaker to door and secure with screws.
  3. Fit front door trim casing. See BODY, Doors.

AERIAL

Service repair no - 86.50.18

Remove

  1. Remove engine compartment access grille. See BODY, Exterior fittings.

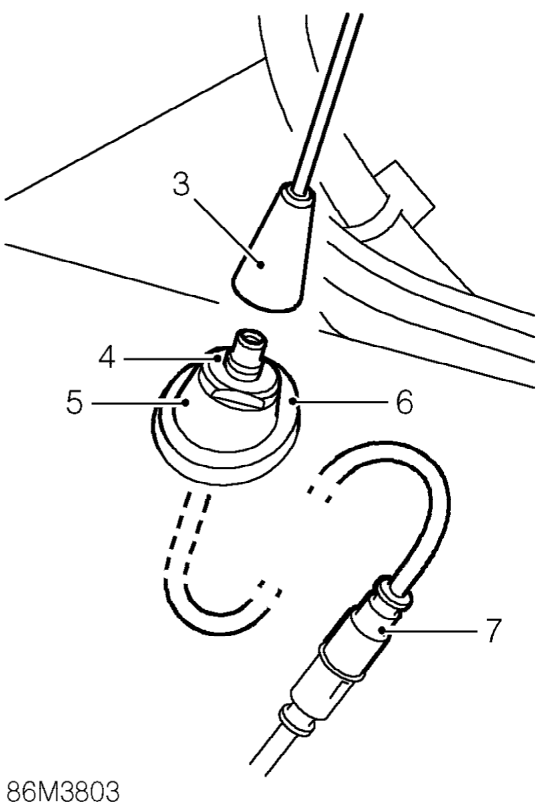

Aerial – Remove engine compartment access grille. See BODY, Exterior fittings.
  1. Unscrew aerial from base.
  2. Using a 17 mm open ended spanner, remove aerial base locking nut.
  3. Collect locking nut and outer sleeve.
  4. Remove aerial base from body.
  5. Disconnect aerial coaxial lead from harness.

Refit

  1. Position aerial base in body.
  2. Fit sleeve and tighten locking nut to 3 Nm.

NOTE: If the vehicle is fitted with a rear spoiler ensure the aerial mast does not contact the rear spoiler before tightening the locking nut.

  1. Connect aerial coaxial lead to harness.
  2. Screw aerial into base.
  3. Fit engine compartment access grille. See BODY, Exterior fittings.
