BOOT LID LAMP

Service repair no - 86.45.16

Remove

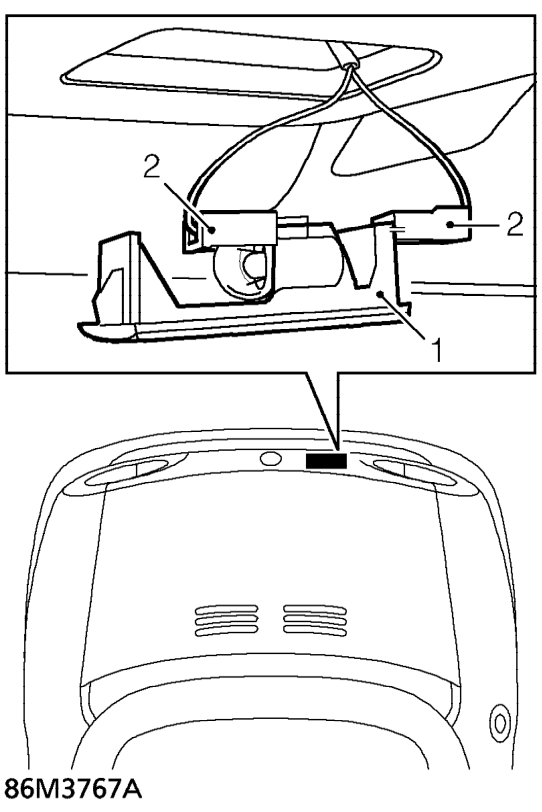

Boot lid lamp – Service repair no - 86.45.16
  1. Release lamp from boot lid.
  2. Disconnect 2 Lucars.
  3. Remove lamp.

Refit

  1. Position lamp and connect Lucars.
  2. Secure lamp in boot lid.

BONNET LAMP

Service repair no - 86.45.24

Remove

  1. Open bonnet.

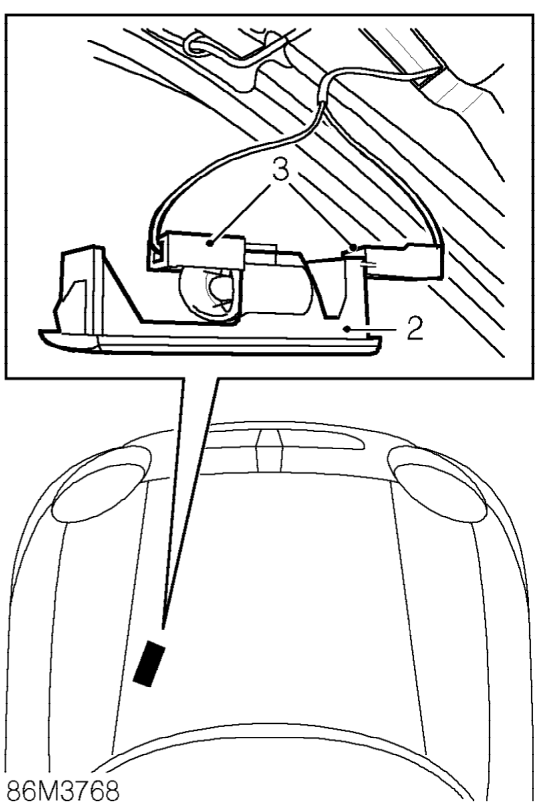

Bonnet lamp – Open bonnet.
  1. Release lamp from bonnet.
  2. Disconnect 2 Lucars.
  3. Remove lamp.

Refit

  1. Position lamp and connect Lucars.

CAUTION: Ensure black wire is connected to terminal closest to the bulb.

  1. Secure lamp in bonnet.
